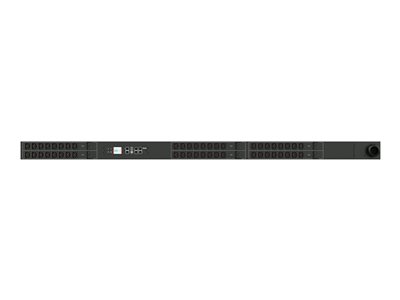

PX3-1765-E2N1V23 208V IPDU W/ 48 NOSW BLK
PX3-1765-E2N1V23 208V IPDU W/ 48 NOSW BLK
- Price:
$2,931.99
- Availability:
- Mfr #: PX3-1765-E2N1V2
- UNSPSC #: 39121017
- Item #: 005878367
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | Power cable - integrated - 10 ft |
| Features | Vertical orientation, LCD display, voltage monitoring, current meter, overload protection, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, watertight plug, metering per input line, metering per branch circuit breaker, replaceable controller, locking outlets, power cable IP67 compliant |
| Compliant Standards | UL, ICES-003, RoHS, FCC Part 15 A, cULus |
Networking
| Remote Management Interface | Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus |
Dimensions & Weight
| Width | 3.5 in |
| Depth | 1.9 in |
| Height | 70.1 in |
| Weight | 28.66 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 2 years |
Environmental Parameters
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 85% |
General
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 10 ft |
| Color | Black powder coat |
Power Device
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 208 - 240 V |
| Input Wiring | 3-phase 4 Wire delta |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 60A |
| Power Output Connectors Details | 48 x power IEC 60320 C13 - 208 V 12 A |
| Output Voltage | AC 208 V |
| Max Electric Current | 48 A |
| Power Capacity | 17300 VA |
| Power Capacity Details | 17.3 kVA at 208 V, 20 kVA at 240 V |
| Circuit Protection | Circuit breaker |
Expansion / Connectivity
| Interfaces | 1 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 2 x USB - 4 pin USB Type A ¦ 1 x cascading - RJ-45 ¦ 1 x management (RS-232) - RJ-45 ¦ 1 x sensor ¦ 1 x monitoring - RJ-45 |
Dimensions & Weight (Shipping)
| Shipping Width | 18.3 in |
| Shipping Depth | 6.7 in |
| Shipping Height | 76.6 in |
| Shipping Weight | 37.48 lbs |
