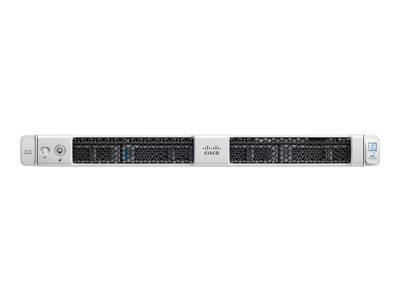

Cisco Connected Safety and Security UCS C220 M5 - rack-mountable - Xeon Silver 4114 2.2 GHz - 16 GB - no HDD
Cisco Connected Safety and Security UCS C220 M5 - rack-mountable - Xeon Silver 4114 2.2 GHz - 16 GB - no HDD
- Price:
$7,723.99
- Availability:
- Mfr #: KIN-UCSM5-1RU-K9
- UNSPSC #: 43211501
- Item #: 006055679
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Cache Memory
| Installed Size | L3 cache - 13.75 MB |
| Cache Per Processor | 13.75 MB |
Miscellaneous
| Included Accessories | 4 x drive blanking panels |
| Compliant Standards | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1, GB 4943, IEC 60950-1 Second Edition, FCC CFR47 Part 15 A, EN 300 386, KN35, Directive 2014/35/EU, KN32 Class A, EN 300386 |
Networking
| Interface (Bus) Type | VIC |
| Ethernet Ports | 2 x 10 Gigabit Ethernet |
| Ethernet Controller | Intel X550 |
| Data Link Protocol | 10 Gigabit Ethernet |
| Remote Management Controller | Cisco Integrated Management Controller |
| Features | Wake on LAN (WoL) |
Dimensions & Weight
| Width | 16.9 in |
| Depth | 29.8 in |
| Height | 1.7 in |
Hard Drive
| Type | No HDD |
Graphics Controller
| Graphics Processor | ASPEED Pilot 4 |
Monitor
| Monitor Type | None. |
Storage Controller
| Type | RAID |
| Controller Interface Type | PCI Express 3.0 |
| Channel Qty | 4 |
| Buffer Size | 1 GB |
Manufacturer Warranty
| Service & Support | Limited warranty - advance parts replacement - 1 year - response time: 10 days |
Environmental Parameters
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
General
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 4 |
Processor / Chipset
| CPU Upgradability | Upgradable |
Expansion / Connectivity
| Bays | 10 (total) / 10 (free) x hot-swap 2.5" SFF |
| Slots | 1 (total) / 1 (free) x mLOM ¦ 2 (total) / 2 (free) x PCIe 3.0 x16 |
| Interfaces | 1 x serial - RJ-45 ¦ 2 x USB 3.0 ¦ 1 x management - RJ-45 ¦ 1 x VGA - DB-15 ¦ 2 x LAN (10Gigabit Ethernet) ¦ 1 x KVM (1 in front) |
Power
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Installed Qty | 1 |
| Nominal Voltage | AC 120/230 V (50 - 60 Hz) |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Power Provided | 770 Watt |
RAM
| Installed Size | 16 GB / 3072 GB (max) |
| Technology | DDR4 SDRAM |
| Memory Specification Compliance | PC4-21300 |
| Form Factor | DIMM 288-pin |
| Slots | 24 (total) / 23 (empty) |
| Features | Single rank |
| Configuration Features | 1 x 16 GB |
Optical Storage
| Type | No optical drive |
