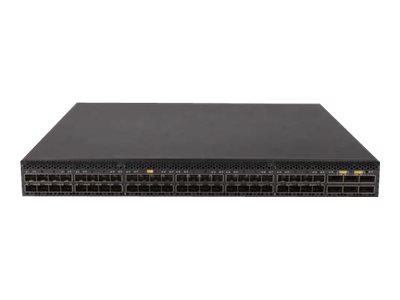

HPE FlexFabric 5710 48SFP+ 6QS+/2QS28 - switch - 48 ports - managed -
HPE FlexFabric 5710 48SFP+ 6QS+/2QS28 - switch - 48 ports - managed -
- Price:
$19,872.99
- Availability:
- Mfr #: JL585A
- UNSPSC #: 43222612
- Item #: 006197404
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, ANATEL, VCCI Class A, CNS 13438, FCC CFR47 Part 15 A, KN32, KN35, AS/NZS CISPR 32 Class A, CNS 14336-1, TCVN 7189, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, ETSI EN 300 386 |
Dimensions & Weight
| Width | 17.3 in |
| Depth | 15.7 in |
| Height | 1.7 in |
| Weight | 18.98 lbs |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
General
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 48 x 1 Gigabit / 10 Gigabit SFP+ |
| Performance | Throughput: 1071 Mpps ¦ Routing/switching capacity: 1440 Gbps ¦ Latency (10 Gbps): 1.5 µs |
| Capacity | IPv4 routing table entries: 16000 ¦ IPv6 routing table entries: 8000 ¦ Virtual interfaces (VLANs): 4094 ¦ ARP entries: 68000 ¦ Static ARP entries: 1000 |
| MAC Address Table Size | 208000 entries |
| Jumbo Frame Support | Yes |
| Routing Protocol | OSPF, BGP-4, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, ECMP, RIPng, MPLS, Bidirectional Forwarding Detection (BFD) |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, SSH-2, CLI |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | Flow control, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, WRR queuing, IPv6 support, SNTP support, WFQ, WRED, sFlow, PIM snooping, STP support, RSTP support, MSTP support, tunneling, DCBX support, priority-based flow control, DHCP snooping, ACL support, QoS, Jumbo Frames support, MLD snooping, DLDP support, ECMP, IPv4 support, LLDP support, DHCP relay, Port Security, DCB, role based access control, MIB, NTP time synchronization, 12MB packet buffer, FCoE forwarding, CoS, SP, IRF technology, DSCP support, FCoE support, ToR, 4 fan tray slots |
| Compliant Standards | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.3ag |
| RAM | 4 GB SDRAM |
| Flash Memory | 1 GB |
Expansion / Connectivity
| Interfaces | 48 x Gigabit / 10Gbit LAN SFP+ ¦ 1 x 10/100/1000 Base-T management ¦ 1 x SFP management ¦ 1 x console (mini-USB) ¦ 1 x serial (console) RJ-45 |
Dimensions & Weight (Shipping)
| Shipping Weight | 19.07 lbs |
Power
| Power Device | Internal power supply (not installed) - hot-plug |
| Max Supported Qty | 2 |
| Installed Qty | 2 (max) |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
Software / System Requirements
| OS Required | Comware v7 |
