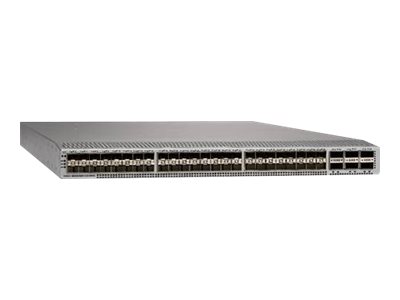

NEXUS 34180YC 48P 10/25G SFP 6P 40/100G
NEXUS 34180YC 48P 10/25G SFP 6P 40/100G
- Price:
$17,171.99
- Availability:
- Mfr #: N3K-C34180YC
- UNSPSC #: 43222612
- Item #: 006401142
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Fixed accessory kit |
| MTBF | 347,890 hours |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1 Second Edition, RoHS, GB 4943, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, KN 61000-4, AS/NZS CISPR22 Class A |
Dimensions & Weight
| Width | 17.3 in |
| Depth | 22.5 in |
| Height | 1.7 in |
| Weight | 18.52 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - advance hardware replacement - 1 year - response time: 10 days |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
General
| Device Type | Switch - 48 ports - L3 - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 25 Gigabit Ethernet |
| Ports | 48 x 10/25 Gigabit SFP+ / SFP28 + 6 x 40/100 Gigabit QSFP+ / QSFP28 |
| Performance | Switching capacity: 3.6 Tbps |
| Capacity | Virtual interfaces (VLANs): 4000 ¦ MST instances: 64 ¦ HSRP groups: 490 ¦ SPAN sessions: 64 ¦ IPv4 hosts: 32000 ¦ Longest prefix match (LPM) entries (IPv4): 4000 ¦ Multicast routes: 8000 ¦ ACL entries (ingress): 7000 |
| MAC Address Table Size | 32K entries |
| Routing Protocol | OSPF, BGP, EIGRP |
| Features | MSTP support, 20MB packet buffer, vPC technology, PTP, 4 fans, VTEP support, POAP, ToR, SPAN, GIR mode |
| RAM | 16 GB |
| Built-in Devices | 128 GB SSD |
Expansion / Connectivity
| Interfaces | 48 x 25GBase-X SFP28/SFP+ ¦ 6 x 100GBase-X QSFP28/QSFP+ ¦ 1 x management RJ-45 ¦ 1 x management SFP ¦ 1 x serial (RS-232) ¦ 1 x USB |
Power
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 500 Watt |
| Features | Port side exhaust |
