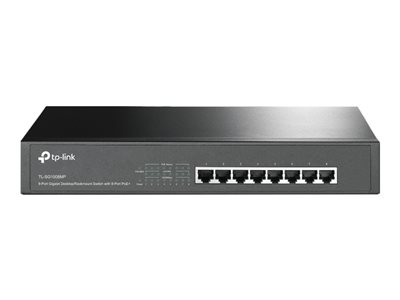

8 Port Gigabit PoE Switch
8 Port Gigabit PoE Switch
- Price:
$116.99
- Availability:
- Mfr #: TL-SG1008MP
- UNSPSC #: 43222612
- Item #: 006513464
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Rubber feet |
| Rack Mounting Kit | Included |
| Compliant Standards | Plug and Play, FCC, RoHS |
Dimensions & Weight
| Width | 11.6 in |
| Depth | 7.1 in |
| Height | 1.7 in |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 90% (non-condensing) |
General
| Device Type | Switch - 8 ports - unmanaged |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 126 W |
| Performance | Bandwidth: 16 Gbps |
| MAC Address Table Size | 4K entries |
| Jumbo Frame Support | 16KB |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, store and forward, half duplex mode, full duplex mode, QoS, Jumbo Frames support, DSCP support, 1.5MB packet buffer, Back Pressure Support, 1 fan |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 801.1p, IEEE 802.3at |
| Built-in Devices | LED panel |
| Status Indicators | Power, 1000M device connected, PoE, link/activity |
Expansion / Connectivity
| Interfaces | 8 x 1000Base-T RJ-45 PoE+ - 30 W |
Power
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 140.67 Watt |
