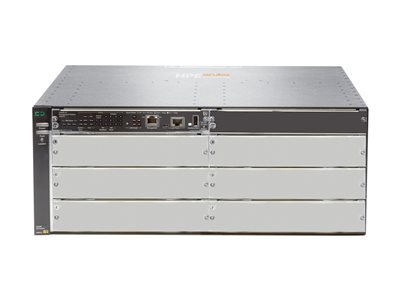

- Product Description HPE Aruba 5406R zl2 - switch - managed - rack-mountable
- Device Type Switch - managed
- Enclosure Type Rack-mountable 4U
- Subtype Gigabit Ethernet
- Power Over Ethernet (PoE) PoE+
- Performance Throughput: 392.8 Mbps ¦ Routing/switching capacity: 528 Gbps ¦ Switching fabric bandwidth: 1015 Gbps
- Capacity IPv4 routing table entries: 10000 ¦ IPv6 routing table entries: 5000
- MAC Address Table Size 64K entries
- Routing Protocol OSPF, RIP-1, RIP-2, BGP, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3
- Remote Management Protocol SNMP 1, RMON 2, RMON, SNMP 3, SNMP 2c, HTTP, SSH-2, CLI, XRMON
- Features VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, half duplex mode, full duplex mode, sFlow, Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), LLDP support, Port Security, DHCP protection, Class of Service (CoS), sFlow v5, Generic Attribute Registration Protocol (GARP), Type of Service (ToS)
- Compliant Standards IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
- Dimensions (WxDxH) 17.5 in x 17.8 in x 6.9 in
- Weight 24.49 lbs
- Manufacturer Warranty Limited lifetime warranty
|
