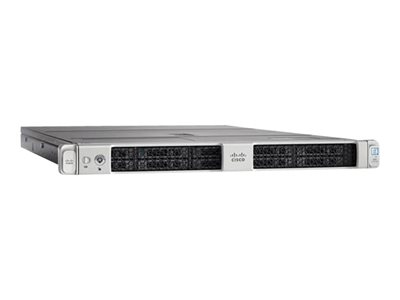

Cisco Secure Network Server 3655 - rack-mountable - Xeon Silver 4116 2.1 GHz - 96 GB - HDD 4 x 600 GB
Cisco Secure Network Server 3655 - rack-mountable - Xeon Silver 4116 2.1 GHz - 96 GB - HDD 4 x 600 GB
- Price:
$30,725.99
- Availability:
- Mfr #: SNS-3655-K9
- UNSPSC #: 43211501
- Item #: 006688041
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Cache Memory
Installed Size | L3 cache - 16.5 MB |
Cache Per Processor | 16.5 MB |
Miscellaneous
Compliant Standards | CISPR 22 Class A, CISPR 24, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A, GB4943.1-2001, EN 55022 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, 21 CFR 1040 Second Edition, EN 300386, EN61000-3-3, EN61000-3-2 |
Networking
Ethernet Ports | 2 x 10 Gigabit Ethernet, 4 x Gigabit Ethernet |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Dimensions & Weight
Width | 16.9 in |
Depth | 29.8 in |
Height | 1.7 in |
Hard Drive
Type | HDD - hot-swap |
Capacity | 4 x 600 GB |
Interface Type | SAS 12Gb/s |
Spindle Speed | 10000 rpm |
Features | Hot-Plug Support |
Graphics Controller
Video Interfaces | VGA |
Monitor
Monitor Type | None. |
Storage Controller
Type | 1 x RAID |
Controller Interface Type | SAS 12Gb/s |
RAID Level | RAID 10 |
Manufacturer Warranty
Service & Support | Limited warranty - advance hardware replacement - 90 days - response time: 10 days |
Environmental Parameters
Min Operating Temperature | 41 °F |
Max Operating Temperature | 95 °F |
Humidity Range Operating | 10 - 90% (non-condensing) |
General
Type | Server |
Product Form Factor | Rack-mountable |
Server Scalability | 2-way |
Processor / Chipset
CPU | Intel Xeon Silver 4116 |
Clock Speed | 2.1 GHz |
Max Turbo Speed | 3 GHz |
Number of Cores | 12-core |
CPU Qty | 1 |
Max CPU Qty | 2 |
CPU Upgradability | Upgradable |
CPU Socket | LGA2011-v3 Socket |
Expansion / Connectivity
Bays | Hot-swap 2.5" |
Interfaces | 4 x LAN (Gigabit Ethernet) - RJ-45 ¦ 2 x LAN (10Gigabit Ethernet) ¦ 1 x KVM ¦ 2 x VGA ¦ 4 x USB ¦ 2 x serial - RJ-45 ¦ 1 x management - RJ-45 |
Power
Device Type | Power supply - hot-plug |
Power Redundancy | Yes |
Installed Qty | 2 |
Max Supported Qty | 2 |
Power Provided | 770 Watt |
RAM
Installed Size | 96 GB / 384 GB (max) |
Technology | DDR4 SDRAM |
Slots | 24 (total) / 18 (empty) |
Configuration Features | 6 x 16 GB |
Optical Storage
Type | No optical drive |
