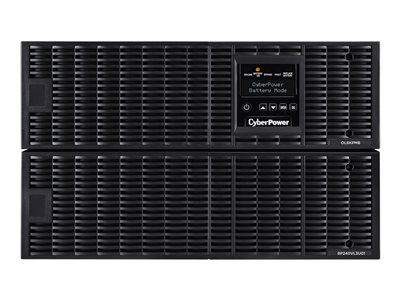

CyberPower Smart App Online OL6KRTHW - UPS - 6000 Watt - 6000 VA
CyberPower Smart App Online OL6KRTHW - UPS - 6000 Watt - 6000 VA
- Price:
$4,386.99
- Availability:
- Mfr #: OL6KRTHW
- UNSPSC #: 26111701
- Item #: 006828178
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
Cables Included | Phone cable - external ¦ USB cable - external ¦ Serial cable - external |
Rack Mounting Kit | Included |
Equipment Protection Value | 300000 US Dollars |
Features | Audible alarm, emergency power off, LED indicators, overload protection, cold-start function, short-circuit protection, Smart Battery Management (SMB), Eco-Mode |
Compliant Standards | IEC 61000-4-5, RoHS, FCC Part 15 A, UL 1778 5th edition, CSA C22.2 No.107.3-05 |
Networking
Remote Management Interface | Ethernet, RS-232, USB |
Remote Management Protocol | SNMP |
Dimensions & Weight
Width | 17 in |
Depth | 32.3 in |
Height | 10.4 in |
Weight | 230.56 lbs |
Manufacturer Warranty
Service & Support | Limited warranty - 3 years |
Battery
Quantity | 20 |
Technology | Lead acid |
Voltage Provided | 12 V |
Capacity | 7 Ah |
Run Time (Up To) | 13 min at half load ¦ 4.4 min at full load |
Recharge Time | 4 hours |
Transfer Time | 0 ms |
Switchover Time | 0 ms |
Features | Sealed |
Environmental Parameters
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 0 - 90% (non-condensing) |
Sound Emission | 38 dBA |
General
Device Type | UPS - rack-mountable / external |
Height (Rack Units) | 6U |
Power Device
UPS Technology | On-line |
Input Voltage | AC 200-240 V |
Input Voltage Range | AC 120 - 280 V |
Frequency Provided | 50/60 Hz ± 0.25Hz |
Frequency Required | 40 - 70 Hz |
Input Connectors | Hardwire |
Power Output Connectors Details | 1 x terminal block |
Output Voltage | AC 200/208/220/230/240 V ± 2% - 50/60 Hz |
Power Capacity | 6000 Watt / 6000 VA |
Dataline Surge Protection | Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line |
Output Waveform | Sinewave |
Surge Energy Rating | 2430 Joules |
Circuit Protection | Fuse, circuit breaker |
Efficiency | 97% Eco mode |
Power Factor (PF) | 1.0 |
Total Harmonic Distortion (THD) | 3 % |
Expansion / Connectivity
Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x EPO (emergency power off) ¦ 1 x management (Ethernet) - RJ-45 |
Expansion Slots | 1 (total) / 0 (free) x expansion slot |
Dimensions & Weight (Shipping)
Shipping Width | 25.6 in |
Shipping Depth | 24.4 in |
Shipping Height | 44.1 in |
Shipping Weight | 284.9 lbs |
Software / System Requirements
Software Included | PowerPanel Business Edition |
