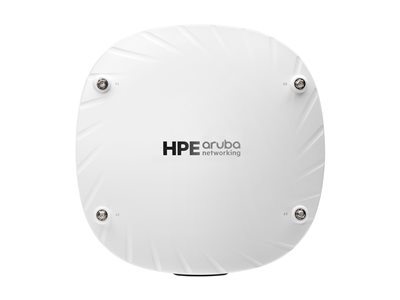

HPE Aruba AP-534 (JP) - Campus - wireless access point - Bluetooth, 802.11a/b/g/n/ac/ax
HPE Aruba AP-534 (JP) - Campus - wireless access point - Bluetooth, 802.11a/b/g/n/ac/ax
- Price:
$1,557.99
- Availability:
- Mfr #: JZ330A
- UNSPSC #: 43222631
- Item #: 006855065
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Internet of Things (IoT)
Internet of Things (IoT) Compatible | Yes |
Communications Technology | Bluetooth Low Energy (LE), Zigbee |
Miscellaneous
Included Accessories | Mounting brackets |
MTBF | 57 years |
Compliant Standards | FCC, EN 60601-1-1, CE/EMC, Directive 2014/35/EU, Directive 2014/30/EU, ISED, Directive 2014/53/EU, IEC/EN/UL 60950, EN60601-1-2 |
Networking
Form Factor | External |
Connectivity Technology | Wireless |
Data Transfer Rate | 2.4 Gbps |
Line Coding Format | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA |
Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
Spread Spectrum Method | OFDM, DSSS, OFDMA |
Frequency Band | 2.4 GHz, 5 GHz |
Performance | Maximum data rate (2.4 GHz): 1150 Mbps ¦ Maximum data rate (5 GHz): 2.4 Gbps ¦ Aggregate bandwidth: 3.55 Gbps |
Capacity | Wireless clients per Wi-Fi radio: 1024 ¦ OFDMA units: 37 ¦ BSSIDs per radio: 16 |
Status Indicators | System, status |
Features | Trusted Platform Module (TPM), LACP support, Adaptive Radio Management (ARM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), AppRF technology, MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Air Monitor (AM), Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), High-Throughput (HT) support, 4x4 MU-MIMO technology, Orthogonal Frequency Division Multiplexing (OFDM), Aruba AirMatch, spectrum analyzer, Very High Throughput (VHT) support, Orthogonal Frequency Division Multiple Access (OFDMA), unified AP support, custom deep-sleep mode, High Efficiency (HE) support, Target Wait Time (TWT) |
Encryption Algorithm | WPA, WPA2, WPA3 |
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax |
Manufacturer Warranty
Service & Support | Limited warranty - lifetime |
Environmental Parameters
Min Operating Temperature | 32 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 5 - 93% (non-condensing) |
General
Device Type | Wireless access point |
Ruggedized Design | Indoor |
Width | 9.4 in |
Depth | 9.4 in |
Height | 2.2 in |
Weight | 2.2 lbs |
Expansion / Connectivity
Interfaces | 1 x HPE Smart Rate - RJ-45 ¦ 1 x USB 2.0 ¦ 4 x antenna - RP-SMA x 4 |
Power
Power Over Ethernet (PoE) Supported | PoE |
Antenna
Antenna | External detachable |
Antenna Qty | 4 |
Software / System Requirements
OS Required | ArubaOS, InstantOS |
