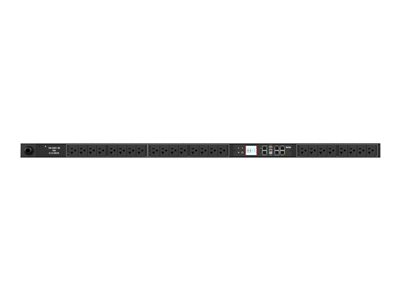

3PH 208V 16A 24XNEMA 5-20R NEMAL21-20P 5.8KVA 0U
3PH 208V 16A 24XNEMA 5-20R NEMAL21-20P 5.8KVA 0U
- Price:
$1,953.99
- Availability:
- Mfr #: PX3-5561
- UNSPSC #: 39121017
- Item #: 006857838
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | Power cable - integrated - 10 ft |
| Rack Mounting Kit | Included |
| Features | Vertical orientation, LCD display, current meter, vertical orientation, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, visible alarm, remote outlet switching, metering per input line, metering per output receptacle, replaceable controller, cord retention outlet, bottom-front feed cord entry, voltage meter, ARM Cortex A5 CPU, 16MB SPI Flash, 128MB DDR2 RAM |
| Compliant Standards | UL, ICES-003, RoHS, WEEE, AES-256, FCC Part 15 A, cULus, SAA, IEC 62053-21, ISO 62053-21, SSL |
Networking
| Remote Management Interface | RS-232, USB, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus, IPv4, IPv6, LDAP |
Dimensions & Weight
| Width | 2 in |
| Depth | 2.6 in |
| Height | 51.1 in |
Manufacturer Warranty
| Service & Support | Limited warranty - 2 years |
Environmental Parameters
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 85% |
General
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Color | Black powder coat |
Power Device
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 190 - 208 V |
| Input Wiring | 3-phase WYE (star) |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L21-20P |
| Power Output Connectors Details | 24 x power NEMA 5-20R 16 A |
| Output Voltage | AC 120 V |
| Max Electric Current | 16 A |
| Power Capacity | 5800 VA |
| Power Capacity Details | 5.3 kVA at 190 V, 5.8 kVA at 208 V |
Expansion / Connectivity
| Interfaces | 2 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x USB - 4 pin USB Type B ¦ 2 x USB - 4 pin USB Type A ¦ 1 x expansion - RJ-45 ¦ 1 x management (RS-232) - RJ-45 ¦ 1 x sensor - RJ-45 ¦ 1 x feature - RJ-45 |
