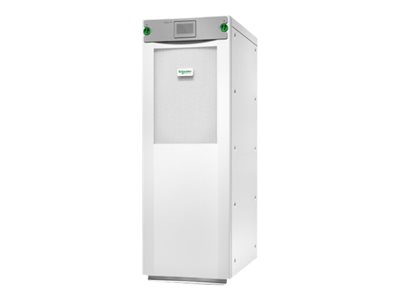

Galaxy VS UPS 40kW 480V, 2 internal 9Ah smart modular battery strings,
  • Price:
    $34,033.99
« Back

Galaxy VS UPS 40kW 480V, 2 internal 9Ah smart modular battery strings,

Galaxy VS UPS 40kW 480V, 2 internal 9Ah smart modular battery strings,

  • Price:
    $34,033.99
  • Availability:
  • Mfr #:  GVSUPS40KB4GS
  • UNSPSC #:  26111707
  • Item #:  007476498
  • Add to Shopping List
  • cnet cat code #:  10061403
Need Help? Contact Zones Online support at 800.408.9663
Miscellaneous
Included Accessories Dust filter
Features Touch screen interface, dust protection, audible alarm, built-in static bypass, overcurrent protection, overload protection, overdischarge protection, visible alarm, VRLA battery support, double conversion, 4.3" touch screen LCD display
Compliant Standards IEC 62040-3, RoHS, FCC Part 15 A, REACH, CSA C22.2 No. 107.3, IP20, IEC 60721-4-2, UL 1778 5th edition
Networking
Remote Management Interface Ethernet 10/100/1000
Remote Management Protocol SNMP
Sustainability Information
ENERGY STAR Yes
Dimensions & Weight
Width 20.5 in
Depth 33.3 in
Height 58.5 in
Weight 1014.12 lbs
Manufacturer Warranty
Service & Support Limited warranty - 1 year - on-site
Battery
Type Expandable
Quantity 2 battery strings (installed) / 4 (supported)
Technology Lead acid
Voltage Provided 480 V
Capacity 9 Ah
Run Time (Up To) 10 min at 125% load ¦ 1 min at 150% load
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 0 - 95% (non-condensing)
Sound Emission 61 dB
General
Device Type UPS - external
Bundled Services Start-Up Service 5X8
Color White, RAL 9003
Environmental Standards
ENERGY STAR Yes
Power Device
UPS Technology On-line
Power Modules Qty 2
Input Voltage AC 480 V
Input Voltage Range AC 408 - 552 V
Frequency Provided 50/60 Hz ± 0.1%
Input Wiring 3-phase
Frequency Required 40 - 70 Hz
Output Voltage AC 480 V ± 1% - 50/60 Hz
Power Capacity 40 kW / 40000 VA
Output Waveform Sinewave
Efficiency 95.2% at 25% Load, 96.6% at 50% Load, 97% at 75% Load, 97.1% at 100% Load
Expansion / Connectivity
Interfaces 1 x management (Gigabit Ethernet)
Expansion Slots 1 SmartSlot
Dimensions & Weight (Shipping)
Shipping Width 25.2 in
Shipping Depth 39 in
Shipping Height 66.1 in
Shipping Weight 1080.25 lbs
