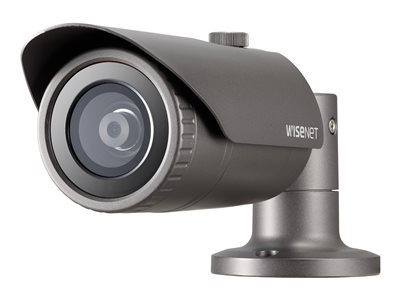

OUTDOOR VANDAL BULLET CAMERA, 5MP 4MM
OUTDOOR VANDAL BULLET CAMERA, 5MP 4MM
- Price:
$334.99
- Availability:
- Mfr #: QNO-8020R
- UNSPSC #: 43222631
- Item #: 007488957
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Interfaces
| Video | Composite video |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, EAP, LLDP |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
Miscellaneous
| Compliant Standards | FCC, cULus, IK10, IP66, EAC, IEEE 802.3af, IEEE 802.1x |
| Color | Dark gray |
Lens Construction
| Type | Fixed focal |
| Focal Length | 4 mm |
| Lens Iris | F/1.6 |
| Horizontal Field of View (degree) | 79.8 |
| Vertical Field of View (degree) | 58.1 |
| Diagonal Field of View (degree) | 105.9 |
Tilting
| Range (degree) | 0 to 67 |
Image Sensor
| Type | 5 MP CMOS 1/2.8" |
| Effective Pixels | 2592 x 1944 |
Environmental Parameters
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 131 °F |
| Relative Humidity (operating) | 0 - 90% |
General
| Device Type | Network surveillance camera |
| Connectivity Technology | Wired |
| Width | 2.8 in |
| Depth | 2.8 in |
| Height | 9.7 in |
| Weight | 23.98 oz |
Camera
| Type | Color - Day&Night - fixed |
| Video Format | NTSC, PAL |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 2592 x 1944 |
| Motion Detection | Yes |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Minimum Illumination | 0.15 lux - color - F1.6 - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on |
| Infrared LEDs | Yes |
| Infrared Distance | 82 ft |
| Digital Video Capture Resolution | 1280 x 720, 720 x 480, 640 x 480, 1280 x 960, 720 x 576, 800 x 600, 1920 x 1080, 640 x 360, 2592 x 1944, 800 x 448 |
| Frame Rate (max) | 30 frames per second |
| Features | Backlight Compensation (BLC), Wide Dynamic Range (WDR), Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Lens Distortion Compensation (LDC), tamper-detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Samsung Super Noise Reduction (SSNR), WiseStream II support, IP address filtering, aluminum housing, ONVIF (Profile T) support, direction detection |
Panning
| Range (degree) | 0 to 350 |
Expansion / Connectivity
| Ports | Composite video ¦ LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
Power
| Power Requirements | PoE Class 3 |
| Power Device | 7.5 Watt |
Software / System Requirements
| OS Required | Microsoft Windows 7 / 8.1 / 10, Apple MacOS X 10.10 - 10.14 |
