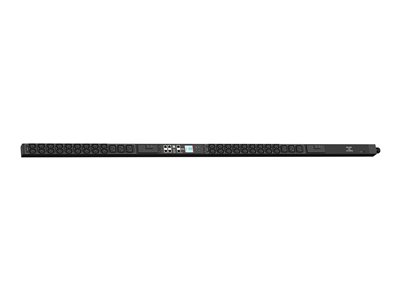

1PH 208V 30A 42 36XC13 6XC19 NEMA L6-30P BOTTOM-BOTTOM
1PH 208V 30A 42 36XC13 6XC19 NEMA L6-30P BOTTOM-BOTTOM
- Price:
$1,100.99
- Availability:
- Mfr #: PX3-1862V-N2
- UNSPSC #: 39121017
- Item #: 007501456
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | Power cable 10 ft |
| Features | Vertical orientation, LCD display, voltage monitoring, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter |
| Compliant Standards | UL, cULus, IEC 62053-21, ISO 62053-21 |
Networking
| Remote Management Interface | Ethernet 10/100, USB, Ethernet 10/100/1000 |
| Remote Management Protocol | Telnet, SNMP 3, HTTP, TFTP, SSH, CLI, JSON-RPC, Modbus, DHCP |
Dimensions & Weight
| Width | 2 in |
| Depth | 1.7 in |
| Height | 70.1 in |
| Weight | 13.67 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 2 years |
Environmental Parameters
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 0 - 85% |
General
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 10 ft |
Power Device
| Input Voltage | AC 208 V |
| Input Wiring | 1-phase |
| Input Connectors | 1 x power NEMA L6-30P |
| Power Output Connectors Details | 36 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 |
| Output Voltage | AC 208 V |
| Max Electric Current | 30 A |
| Power Capacity | 5000 VA |
Expansion / Connectivity
| Interfaces | 1 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 2 x USB - 4 pin USB Type A ¦ 1 x sensor - RJ-45 |
Dimensions & Weight (Shipping)
| Shipping Width | 11 in |
| Shipping Depth | 4.5 in |
| Shipping Height | 80.9 in |
| Shipping Weight | 18.52 lbs |
