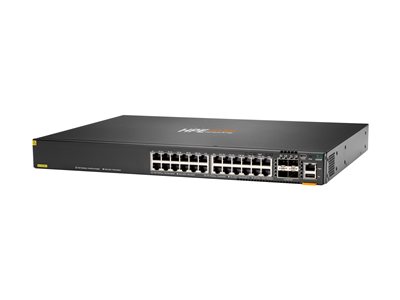

ARUBA 6300F 24G CL4 POE 4SFP56 SW
ARUBA 6300F 24G CL4 POE 4SFP56 SW
- Price:
$6,392.99
- Availability:
- Mfr #: JL666A#ABA
- UNSPSC #: 43222612
- Item #: 007483503
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, WEEE, FCC Part 15 A, CAN/CSA C22.2 No. 60950-1-07, VCCI Class A, IEC 60950-1:2005, EN 61000-3-3:2013, CISPR 24:2010, EN 55024:2010, EN 55022:2010, EN 61000-3-2:2014, EN 60825-1:2007, IEC 60825-1:2007 Class 1, EN 55032:2012 Class A, CISPR 32 Class A, CISPR 35, EN 55024:2010 Class A, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011, EN 55035:2017 |
| TAA Compliant | Yes |
| Localization | English / United States |
Dimensions & Weight
| Width | 17.4 in |
| Depth | 12.9 in |
| Height | 1.7 in |
| Weight | 10.91 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 15 - 95% (non-condensing) |
General
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x 50 Gigabit Ethernet SFP56 |
| Power Over Ethernet (PoE) | PoE+ |
| Performance | Switching capacity: 448 Gbps ¦ Switching throughput: 334 Mpps ¦ 1 Gbps average latency (64-byte packets): 2.28 µs ¦ 10 Gbps average latency (64-byte packets): 1.46 µs ¦ 25 Gbps average latency (64-byte packets): 1.9 µs ¦ 50 Gbps average latency (64-byte packets): 3.49 µs ¦ Stacking bandwidth: 200 Gbps |
| Capacity | Switched virtual interfaces (SVIs): 1000 ¦ IPv4 host table capacity: 32000 ¦ IPv6 host table capacity: 32000 ¦ IPv4 routes (Unicast): 64000 ¦ IPv6 routes (Unicast): 32000 ¦ IPv4 routes (Multicast): 8000 ¦ IPv6 routes (Multicast): 8000 ¦ IGMP groups: 8000 ¦ MLD groups: 4000 ¦ IPv4 ACL entries (ingress): 5000 ¦ IPv6 ACL entries (ingress): 1250 ¦ MAC ACL entries (ingress): 5000 ¦ IPv4 ACL entries (egress): 2000 ¦ IPv6 ACL entries (egress): 500 ¦ MAC ACL entries (egress): 2000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, BGP-4, BGP, IGMP, OSPFv2, PIM-DM, IGMPv3, MSDP, MLDv2, MLD, CIDR |
| Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, XRMON, SFTP |
| Encryption Algorithm | SSL, FIPS 140-2 |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Features | DHCP support, BOOTP support, ARP support, VLAN support, Syslog support, port mirroring, DiffServ support, IPv6 support, sFlow, VRRP support, MSTP support, QoS, MLD snooping, TPM, UDLD, DWRR, LLDP support, fan tray, SNMP trap, MIB, VRF, MVRP, NDP, CoS, SP, tagged VLAN, 8MB packet buffer, 802.1x authentication, ToS, BPDU, ICMP Router Discovery Protocol (IRDP), VXLAN, Link Aggregation, EVPN, NTP, LLDP-MED, DoS protection, RSTP, CDP, BSR Mechanism |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3an, IEEE 802.3at, IEEE 802.3ba, IEEE 802.1AX, ITU-T G.8032, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.3cc, ITU-T Y.1344, IEEE 802.3cd |
| Processor | 1 x ARM Cortex-A72: 1.8 GHz |
| RAM | 8 GB DDR4 SDRAM |
| Flash Memory | 32 GB |
Expansion / Connectivity
| Interfaces | 24 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 4 x 50Gbit LAN SFP56 ¦ 1 x console (USB) Type C ¦ 1 x USB Type A |
Power
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Power Provided | 900 Watt |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
