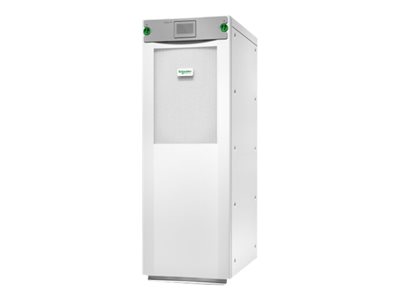

Galaxy VS UPS 15kW 400V, 1 internal 9Ah smart modular battery string,
Galaxy VS UPS 15kW 400V, 1 internal 9Ah smart modular battery string,
- Price:
$24,921.99
- Availability:
- Mfr #: GVSUPS15KB4HS
- UNSPSC #: 44103116
- Item #: 007634785
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Features | Touch screen interface, built-in static bypass, audible alarm, LCD display, visible alarm |
| Compliant Standards | CSA C22.2 No. 107.3, EN 62040-1, EN 62040-2, EN 62040-3, IEC 60721-4-2, IEC 62040-1, IEC 62040-2, IEC 62040-3, UL 1778 5th edition, IP20 |
Networking
| Remote Management Interface | Ethernet |
Dimensions & Weight
| Width | 20.5 in |
| Depth | 33.3 in |
| Height | 58.5 in |
| Weight | 727.52 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 1 year - on-site |
Battery
| Type | Expandable |
| Technology | Lead acid |
| Capacity | 9 Ah |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Sound Emission | 55 dBA |
General
| Device Type | UPS - external |
| Bundled Services | Start-Up Service 5X8 |
| Color | RAL 9003, white |
Power Device
| UPS Technology | On-line |
| Power Modules Qty | 4 |
| Input Voltage | AC 400 V |
| Input Voltage Range | AC 340 - 460 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 3-phase |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | Hardwire 4-wire (3PH + G), hardwire 3-wire (1PH + N + G) |
| Power Output Connectors Details | 1 x hardwire 4-wire (3PH + G) ¦ 1 x hardwire 3-wire (1PH + N + G) |
| Output Voltage | AC 400 V 50/60 Hz |
| Power Capacity | 15 kW / 15000 VA |
| Output Waveform | Sinewave |
| Power Factor (PF) | 0.99 |
Expansion / Connectivity
| Expansion Slots | 1 SmartSlot |
Dimensions & Weight (Shipping)
| Shipping Width | 25.2 in |
| Shipping Depth | 39 in |
| Shipping Height | 66.1 in |
| Shipping Weight | 793.66 lbs |
