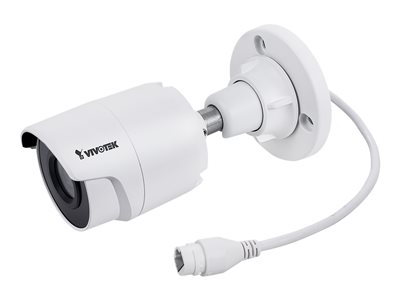

5MP 30M IROUTDR WDR BULLET, IOTSECURITY
5MP 30M IROUTDR WDR BULLET, IOTSECURITY
- Price:
$115.99
- Availability:
- Mfr #: IB9380-H
- UNSPSC #: 43222631
- Item #: 007676714
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Alignment sticker, screw pack, cable gland |
| Compliant Standards | FCC Class A certified, UL, VCCI, C-Tick, IK10, IP66, LVD, IEEE 802.3af |
| Color | White |
Lens Construction
| Type | Fixed focal |
| Focal Length | 3.6 mm |
| Lens Iris | F/2.0 fixed iris |
| Horizontal Field of View (degree) | 76 |
| Vertical Field of View (degree) | 59 |
| Diagonal Field of View (degree) | 100 |
Tilting
| Range (degree) | 90 |
Panning
| Range (degree) | 180 |
Software / System Requirements
| OS Required | Microsoft Windows 7 / Windows 8, Apple macOS 10.12 |
Interfaces
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, RTCP, PPPoE, SMB, IGMP, SSL, QOS, CoS, CIFS |
Manufacturer Warranty
| Service & Support | Limited warranty - 2 years |
Image Sensor
| Type | 5 MP PS CMOS 1/2.7" |
Environmental Parameters
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | 0 - 90% |
General
| Device Type | Network surveillance camera |
| Connectivity Technology | Wired |
| Width | 3.6 in |
| Depth | 7 in |
| Height | 3.6 in |
| Weight | 18.69 oz |
Camera
| Type | Color - Day&Night - fixed - vandal / weatherproof |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 2560 x 1920 |
| Motion Detection | Yes |
| Digital Zoom | 48 |
| Exposure Range | 1/5 sec - 1/32000 sec |
| Minimum Illumination | 0.03 lux - color - F2.0 ¦ 0.005 lux - B&W - F2.0 ¦ 0 lux - IR - infrared LEDs on |
| Infrared LEDs | 2 |
| Infrared Distance | 98 ft |
| Video Capture | 2560 x 1920 @ 20 fps |
| RAM | 256 MB |
| Flash Memory | 128 MB |
| Features | Backlight Compensation (BLC), date/time stamp, sharpness control, white balance, progressive scanning, saturation control, brightness control, Power over Ethernet, contrast control, image flip, image mirror, ONVIF support, infrared cut filter, Privacy Mask Function, adjustable gain control, Highlight Compensation (HLC), Digital Image Stabilization (DIS), ePTZ, tamper-detection, Smart IR, Event Notification, Wide Dynamic Range (WDR) Pro, Audio Detection, Defog, Supreme Night Visibility, 3D Digital Noise Reduction Technology, exposure control, embedded SOC processor, Smart Stream III, 3 video streams |
Expansion / Connectivity
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
Power
| Power Requirements | PoE Class 2 |
| Power Device | 6.49 Watt |
