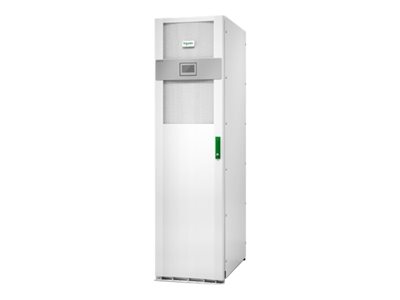

Galaxy VS UPS 100kW 480V, 3 internal 9Ah smart modular battery strings

Galaxy VS UPS 100kW 480V, 3 internal 9Ah smart modular battery strings

  • Price:
    $51,904.99
  • Availability:
  • Mfr #:  GVSUPS100KB5GS
  • UNSPSC #:  39121006
  • Item #:  007862210
  • Add to Shopping List
  • cnet cat code #:  10060904
Need Help? Contact Zones Online support at 800.408.9663
Miscellaneous
Included Accessories Dust filter
Features Audible alarm, Parallel Capability, built-in static bypass, touch screen LCD display
Compliant Standards IEC 62040-3, IEC 62040-1-1, IEC 62040-2, FCC Part 15 A, CSA C22.2 No. 107.3, IP20, OSHPD, UL 1778 5th edition
Networking
Remote Management Interface Ethernet
Remote Management Protocol SNMP, Modbus
Dimensions & Weight
Width 21.7 in
Depth 33.3 in
Height 77.6 in
Weight 1499.13 lbs
Manufacturer Warranty
Service & Support Limited warranty - 1 year - on-site
Battery
Type Expandable
Quantity 3 battery strings (installed) / 5 (supported)
Technology Lead acid
Voltage Provided 480 V
Capacity 9 Ah
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 0 - 95% (non-condensing)
Sound Emission 65 dBA
General
Device Type UPS - external
Bundled Services Start-Up Service 5X8
Color White, RAL 9003
Power Device
UPS Technology On-line
Input Voltage AC 480 V
Input Voltage Range AC 408 - 552 V
Frequency Provided 50/60 Hz
Input Wiring 3-phase
Frequency Required 40 - 70 Hz
Output Voltage AC 480 V ± 1% - 50/60 Hz
Power Capacity 100 kW / 100000 VA
Output Waveform Sinewave
Efficiency 96% at 25% Load, 96.9% at 50% Load, 97% at 100% Load, 97% at 75% Load
Power Factor (PF) 0.99
Total Harmonic Distortion (THD) 3 %
Expansion / Connectivity
Interfaces Management (Ethernet) - RJ-45
Dimensions & Weight (Shipping)
Shipping Width 29.7 in
Shipping Depth 39.8 in
Shipping Height 82 in
Shipping Weight 1554.24 lbs
