TP-Link's new PoE/PoE+ switches with all 10/100 Mbps RJ45 ports supporting the PoE+ standard provides a simple way to expand the wired network while transferring power over the same Ethernet cable at the same time. With up to 30 W per port TL-SL1226P can power more high-powered devices such as Access Points, IP Cameras, IP Phones and so on. Moreover, with innovative Extend Mode, devices can get PoE power supply and data transmission from a distance of 250 m. Priority mode ensures high priority for port 1 - 8, which guarantees the quality of sensitive applications. TL-SL1226P supports Isolation Mode that divides traffic for ports 1 - 24 for higher security and performance.

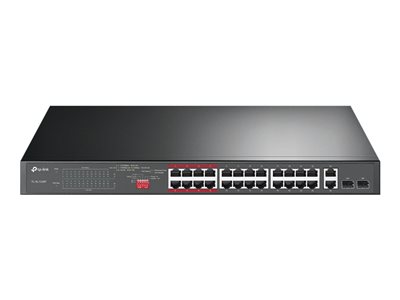

- Product Description TP-Link TL-SL1226P - switch - 26 ports - unmanaged - rack-mountable
- Device Type Switch - 26 ports - unmanaged
- Enclosure Type Rack-mountable 1U
- Subtype Fast Ethernet
- Ports 24 x 10/100 (PoE+) + 2 x 10/100/1000 + 2 x combo Gigabit SFP
- Power Over Ethernet (PoE) PoE+
- PoE Budget 250 W
- Performance Switching capacity: 8.8 Gbps ¦ Packet forwarding rate: 6.54 Mpps
- Capacity Packet buffer size: 4.1 Mbit
- MAC Address Table Size 8K entries
- Jumbo Frame Support 10KB
- Features Flow control, PoE, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, PoE+, 2 fans, MAC address learning, MAC address aging, priority mode, extend mode, security slot (Kensington security lock compatible)
- Compliant Standards IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
- Power AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH) 17.3 in x 7.1 in x 1.7 in
|
