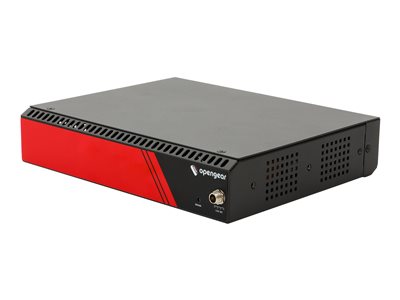

8S+8E, 1G RAM, 16G FLASH
8S+8E, 1G RAM, 16G FLASH
- Price:
$2,460.99
- Availability:
- Mfr #: OM1208-8E
- UNSPSC #: 43222630
- Item #: 008001627
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | 4 rubber feet, rack mount kit |
| Cables Included | 1 x serial adapter |
| MTBF | 100,000 hours |
| Compliant Standards | TUV, UL 1950, RoHS, FIPS 140-2, PTCRB, GCF, EN 61000-3-3:2008, EN 61000-3-2:2006+A2:2009, EN 61000-4-2:2009, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-11:2004, CISPR 24:2010, EN 55024:2010, EN 61000-4-8:2010, EN 55022:2010, AS/NZS CISPR22:2009+A1:2010, CISPR 22:2008, ICES-003 issue 5, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010, FCC Part 15 Subpart B:2015 |
Networking
| Form Factor | External |
| Ports Qty | 8 |
| Connectivity Technology | Wired |
| Data Transfer Rate | 230.4 Kbps |
| Data Link Protocol | RS-232, USB 2.0 |
| Network / Transport Protocol | IPv4, IPv6 |
| Remote Management Protocol | SSH, LDAP |
| Features | Firewall protection, Authentication, Authorization and Accounting (AAA), Zero-touch provisioning (ZTP), Trusted Platform Module 2.0 (TPM 2.0), OpenVPN client |
| Authentication Method | TACACS+ |
Manufacturer Warranty
| Service & Support | Limited warranty - 4 years |
Environmental Parameters
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 90% |
General
| Device Type | Console server |
| Height (Rack Units) | 1U |
| Width | 8.7 in |
| Depth | 6.7 in |
| Height | 1.7 in |
| Weight | 2.2 lbs |
Processor / Memory / Storage
| Processors Installed | 1 x AMD GX-412TC 1.4 GHz |
| Max Supported Qty | 1 |
| RAM | 4 GB |
| Flash Memory | 16 GB |
Expansion / Connectivity
| Interfaces | 10 x 1000Base-T - RJ-45 ¦ 8 x RS-232 - RJ-45 ¦ 2 x USB 2.0 - Type A ¦ 2 x 1000Base-X - SFP (mini-GBIC) ¦ 2 x USB 3.0 - Type A |
Power
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V |
| Power Consumption Operational | 25 Watt |
