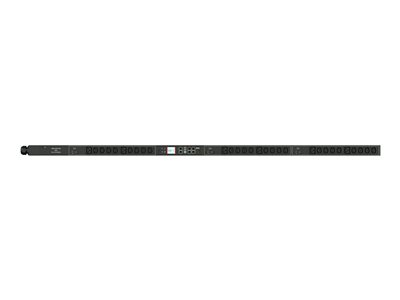

OUTLET METERED/SWITCHED 24XC13 6XC19 NEMA L21-30P 30A 3PH 208V

Need Help? Contact Zones Online support at 800.408.9663

Miscellaneous

Cables Included	Power cable - integrated - 10 ft
Rack Mounting Kit	Included
Features	Vertical orientation, LCD display, voltage monitoring, current meter, overload protection, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, splash-proof plug, remote outlet switching, metering per input line, metering per branch circuit breaker, metering per output receptacle, replaceable controller, locking outlets, power cable IP44 compliant
Compliant Standards	UL, ICES-003, RoHS, FCC Part 15 A, cULus

Networking

Remote Management Interface	RS-232, USB, Ethernet 10/100/1000
Remote Management Protocol	SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus

Dimensions & Weight

Manufacturer Warranty

Service & Support

Limited warranty - 2 years

Environmental Parameters

Max Operating Temperature	140 �F
Humidity Range Operating	85%

General

Device Type	Power distribution unit - rack-mountable
Height (Rack Units)	0U
Cord Length	10 ft
Color	Black

Power Device

Input Voltage	AC 208 V
Input Voltage Range	AC 190 - 208 V
Input Wiring	3-phase WYE (star)
Frequency Required	50/60 Hz
Input Connectors	1 x power NEMA L21-30P
Power Output Connectors Details	24 x power IEC 60320 C13 - 208 V 12 A � 6 x power IEC 60320 C19 - 208 V 16 A
Output Voltage	AC 208 V
Max Electric Current	30 A
Power Capacity	8600 VA
Power Capacity Details	8.6 kVA at 208 V, 7.9 kVA at 190 V
Circuit Protection	Circuit breaker

Expansion / Connectivity

Interfaces

2 x management (Gigabit Ethernet) - RJ-45 � RS-232 � USB � Cascading

Dimensions & Weight (Shipping)
