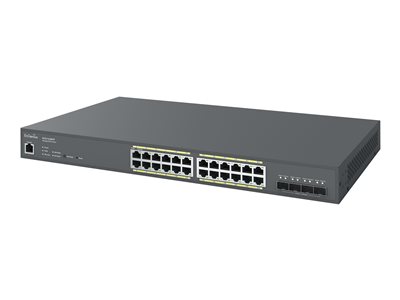

24PORT CLOUD MANAGED 1U RM 19GBE L2 POE+ SW 4X10GB SFP+ 3AF
24PORT CLOUD MANAGED 1U RM 19GBE L2 POE+ SW 4X10GB SFP+ 3AF
- Price:
$411.99
- Availability:
- Mfr #: ECS1528FP
- UNSPSC #: 43222612
- Item #: 008029358
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | 1 x network cable |
| Rack Mounting Kit | Included |
| Compliant Standards | IC, FCC |
Dimensions & Weight
| Width | 17.3 in |
| Depth | 10.2 in |
| Height | 1.7 in |
| Weight | 8.6 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 2 years |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
General
| Device Type | Switch - 24 ports - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 410 W |
| Performance | Switching capacity: 128 Gbps |
| Capacity | Multicast groups: 256 ¦ ARP entries: 192 ¦ Static ARP entries: 192 ¦ IPv4 routes (static): 63 ¦ IPv6 routes: 21 ¦ VLAN IDs: 4094 ¦ Priority QoS queues: 8 |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | 9KB |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH |
| Encryption Algorithm | SSL |
| Authentication Method | RADIUS |
| Features | Flow control, full duplex capability, IGMP snooping, Syslog support, store and forward, IPv6 support, STP support, DHCP snooping, ACL support, QoS, SSH support, MLD snooping, reset button, bandwidth control, IPv4 support, DHCP relay, Port Security, 2MB packet buffer, Multicast filtering function, CoS, MAC and IP-based ACLs support, Time-controlled ACLs support, Protocol-based VLANs support, ARP inspection, Link Aggregation, scheduler, Voice VLAN, secure backup, Selectable Operation Modes, DSCP Trust, WRR, loopback detection, VLAN Tagging, port-based VLAN, ARP filtering, import SSL certificate |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.3at, IEEE 802.3az |
| RAM | 512 MB SDRAM |
| Flash Memory | 128 MB |
| Status Indicators | Power, fail, PoE, LAN, link/activity/speed, PoE max |
Expansion / Connectivity
| Interfaces | 24 x 1000Base-T RJ-45 PoE+ ¦ 4 x 10Gbit LAN SFP+ ¦ 1 x console RJ-45 |
Dimensions & Weight (Shipping)
| Shipping Width | 20.9 in |
| Shipping Depth | 13.6 in |
| Shipping Height | 4 in |
| Shipping Weight | 10.36 lbs |
Power
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Power Consumption Operational | 412.26 Watt |
