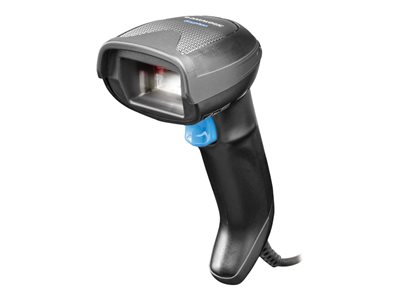

Gryphon 2DHD HC Black +USB
Gryphon 2DHD HC Black +USB
- Price:
$272.99
- Availability:
- Mfr #: GD4520-BKK1-HD-DRA
- UNSPSC #: 43211711
- Item #: 008121867
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | 1 x USB cable - 6.6 ft |
| Compliant Standards | RoHS, IP52 |
Dimensions & Weight
| Width | 2.7 in |
| Depth | 4.3 in |
| Height | 6.5 in |
| Weight | 5.68 oz |
Barcode
| Interface Type | USB |
| Scan Element Type | 2D imager |
| Sensor Resolution | 1280 x 800 |
| Light Source Wave Length | 650 nm |
| Skew (Degrees) | 65 |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 15% |
| Decode Capability | MaxiCode, Aztec code, MicroPDF417, Postnet, PDF417, Data Matrix, PLANET, Australian Post, British Post, China Post, Japanese Post, Kix (Netherlands) Post, MacroPDF417, RM4SCC, Royal Mail, Micro QR code, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code, UPC A Composite, UPC E Composite |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | Antimicrobial protection, Datalogic Three Green Lights (3GL), Green Spot technology, disinfectant ready housing, Digimarc Barcode Technology, Direct Part Mark (DPM) |
Manufacturer Warranty
| Service & Support | Limited warranty - 5 years |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Drop Specification | 6 ft to concrete |
General
| Type | Barcode scanner |
| Color | Black |
Expansion / Connectivity
| Interfaces | 1 x USB |
