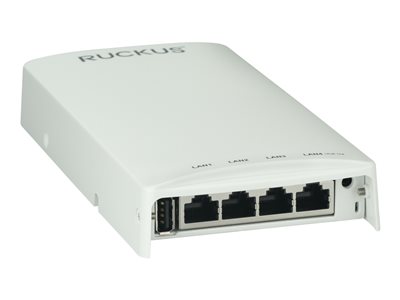

H550 US WALLPLATE 11AX AP 2X22
H550 US WALLPLATE 11AX AP 2X22
- Price:
$494.99
- Availability:
- Mfr #: 901-H550-US00
- UNSPSC #: 43222631
- Item #: 008177861
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Internet of Things (IoT)
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | Bluetooth Low Energy (LE), Zigbee |
Miscellaneous
| Compliant Standards | EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, RoHS, EN 60950-1, WEEE, EN 60601-1-2, EN 62311, EN 50121-4, EN 50121-1, EN 61373, ISTA 2A |
Networking
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 1.8 Gbps |
| Data Link Protocol | Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Network / Transport Protocol | L2TP, IPv4, IPv6 |
| Routing Protocol | GRE |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Max transmit power on 2.4 GHz: 19 dBm ¦ Max transmit power on 5 GHz: 22 dBm |
| Capacity | Maximum number of clients: 512 ¦ BSSIDs per radio: 8 |
| Features | Load balancing, wall mountable, Wireless Intrusion Detection System (WIDS), Access Control List (ACL) support, Quality of Service (QoS), Multiple SSID support, Low Density Parity Check (LDPC), Space Time Blocking Code (STBC), Wireless Intrusion Prevention System (WIPS), Captive Portal, 802.1x authentication, BeamFlex+ Smart Antenna Technology, beamforming technology, rate limit, Hotspot Access Point Capability, Airtime Fairness, 2x2 MU-MIMO technology, port-based VLAN, ChannelFly, SmartMesh, 2x2 SU-MIMO technology, Polarization Diversity with Maximal Ratio Combining (PD-MRC), multicast mode, Airtime-based WLAN Prioritization, HotSpot 2.0, WISPr authentication, 2x2:2 streams, IPv4 and IPv6 dual stack, SoftGRE tunneling, WMM Power Save, SmartCast, SmartRoam, Spectrum Analysis, SpeedFlex, SmartZone, background scan based, adaptive band balancing, VLAN pooling, application recognition and control, device fingerprinting |
| Encryption Algorithm | AES, TKIP, WPA2, WPA-PSK, WPA3-Enterprise, WPA3-Personal, Opportunistic Wireless Encryption (OWE) |
| Authentication Method | RADIUS |
| Compliant Standards | IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11n, IEEE 802.11k, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11v, IEEE 802.3bt, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
General
| Height | 1.2 in |
| Weight | 9.81 oz |
| Localization | United States |
Expansion / Connectivity
| Interfaces | 1 x 1000Base-T (PoE input) - RJ-45 ¦ 1 x 1000Base-T (PoE output) - RJ-45 ¦ 3 x 1000Base-T - RJ-45 ¦ 1 x USB 2.0 - Type A |
Power
| Power Over Ethernet (PoE) Supported | UPOE / PoH |
Antenna
| Gain Level | 1 dBi |
