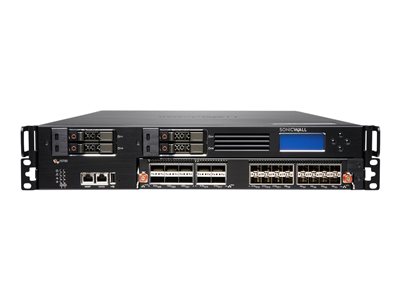

NSSP 15700 HIGH AVAIL
NSSP 15700 HIGH AVAIL
- Price:
$126,712.99
- Availability:
- Mfr #: 02-SSC-6000
- UNSPSC #: 43222501
- Item #: 008193863
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
IP Telephony
| VoIP Protocols | SIP, H.323 v1, H.323 v2, H.323 v3, H.323 v4, H.323 v5 |
| IP Telephony Features | VoIP gatekeeper support |
Miscellaneous
| Compliant Standards | FCC Class A certified, LVD, RoHS, C-Tick, VCCI Class A, MSIP Class A, KCC Class A, UL, cUL, TUV GS, CB, WEEE, REACH, ANATEL, BSMI, EMC, ICES Class A, FIPS 140-2, ICSA Antivirus, ICSA Firewall certified |
Networking
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, ICMP/IP, IPSec, PPPoE, L2TP, DHCP, PPTP, UDP/IP |
| Routing Protocol | BGP, OSPF, RIP-1, RIP-2, static IP routing, policy-based routing (PBR) |
| Remote Management Protocol | HTTP, HTTPS, SNMP 2, SNMP 3, CLI, SSH |
| Performance | Firewall throughput: 105 Gbps ¦ Threat prevention throughput: 82 Gbps ¦ Application throughput: 86 Gbps ¦ IPS throughput: 76.5 Gbps ¦ Firewall throughput (IMIX): 28.5 Gbps ¦ TLS/SSL throughput: 21 Gbps ¦ VPN throughput: 32 Gbps ¦ Connection rate: 800000 connections per second |
| Capacity | SPI connections: 80000000 ¦ DPI connections: 50000000 ¦ DPI SSL connections: 3000000 ¦ VPN tunnels (site-to-site): 25000 ¦ IPSec VPN clients: 2000 (maximum 10000) ¦ Virtual interfaces (VLANs): 512 ¦ Single Sign-On (SSO) users: 100000 ¦ SSL VPN NetExtender clients: 2 (maximum 3000) |
| Features | Deep Packet Inspection (DPI), firewall protection, web threat protection, content filtering, Intrusion Prevention System (IPS), VPN support, Dead Peer Detection (DPD), DHCP over IPSec, DHCP relay, DHCP server, DiffServ Code Point (DSCP) support, IPSec NAT-Traversal (NAT-T), LDAP support, NAT support, PAT support, Quality of Service (QoS), RADIUS support, routing, Stateful Packet Inspection (SPI), DDos attack prevention, IPv6 support, IPv4 support, DNS proxy, Jumbo Frames support, VLAN trunking, port mirroring, Inbound Load Balancing, Outbound Load Balancing, bandwidth control, Syslog support, IPFIX, NetFlow, Stateful switchover (SSO), anti-malware protection, 10 fans |
| Encryption Algorithm | DES, Triple DES, 128-bit AES, 192-bit AES, 256-bit AES, SHA-1, MD5, ISAKMP, IKE |
| Authentication Method | LDAP, XAUTH authentication, RADIUS, internal user database |
| Compliant Standards | IEEE 802.3, IEEE 802.1p |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
General
| Device Type | Security appliance |
| Height (Rack Units) | 2U |
| Width | 17.2 in |
| Depth | 27 in |
| Height | 3.5 in |
| Weight | 57.32 lbs |
Processor / Memory / Storage
| Hard Drive | SSD 480 GB x 2 |
Expansion / Connectivity
| Interfaces | 6 x 100Gb Ethernet - QSFP28 ¦ 4 x 40Gb Ethernet - QSFP+ ¦ 16 x 10Gb Ethernet - SFP+ ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x console - RJ-45 |
Dimensions & Weight (Shipping)
| Shipping Weight | 82.23 lbs |
Power
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Power Consumption Operational | 1065 Watt |
| Power Provided | 1200 Watt |
Software / System Requirements
| OS Provided | SonicOS 7.0 |
