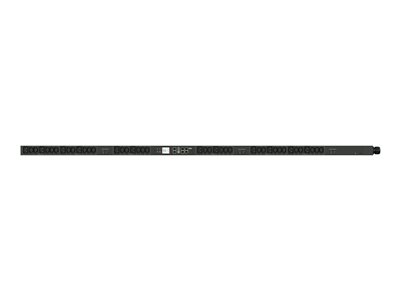

3PH,208V,30A,30XC13,12XC19,L21-30,0U,RED
3PH,208V,30A,30XC13,12XC19,L21-30,0U,RED
- Price:
$3,113.99
- Availability:
- Mfr #: PX3-5926V-Q1V2K1
- UNSPSC #: 39121017
- Item #: 008236836
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | Power cable 10 ft |
| Features | Vertical orientation, LCD display, voltage monitoring, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, remote outlet switching, metering per input line, metering per branch circuit breaker, metering per output receptacle, replaceable controller, ISO/IEC 62053-21 1% metering accuracy, bottom-bottom feed cord entry, 3 x LEGBXA66-20 overload protection, power cable IP44 compliant, cord retention, environmental sensor ready |
| Compliant Standards | UL, ICES-003, RoHS, FCC Part 15 A, cULus |
Networking
| Remote Management Interface | RS-232, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus |
Dimensions & Weight
| Width | 2 in |
| Depth | 2.6 in |
| Height | 76 in |
| Weight | 17.2 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 2 years |
Environmental Parameters
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 85% |
General
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 10 ft |
| Color | Red |
| Image Color Disclaimer | The displayed product image may be a different color |
Power Device
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 208 - 240 V |
| Input Wiring | 3-phase delta |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L15-30P |
| Power Output Connectors Details | 30 x power IEC 60320 C13 12 A ¦ 12 x power IEC 60320 C19 16 A |
| Output Voltage | AC 208 V |
| Max Electric Current | 30 A |
| Power Capacity | 8600 VA |
| Power Capacity Details | 8.6 kVA at 208 V, 10.0 kVA at 240 V |
Expansion / Connectivity
| Interfaces | 2 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x USB - 4 pin USB Type B ¦ 2 x USB - 4 pin USB Type A ¦ 1 x console/modem - RJ-45 ¦ 1 x sensor - RJ-45 ¦ 1 x expansion - RJ-45 |
Dimensions & Weight (Shipping)
| Shipping Width | 14.4 in |
| Shipping Depth | 5.3 in |
| Shipping Height | 89 in |
| Shipping Weight | 24.91 lbs |
