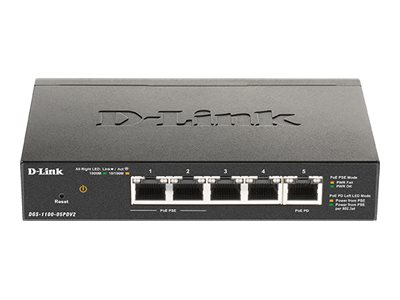

5 Port Gig PoE Smart Switch
5 Port Gig PoE Smart Switch
- Price:
$66.99
- Availability:
- Mfr #: DGS-1100-05PDV2
- UNSPSC #: 43222612
- Item #: 008258790
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| MTBF | 2,357,475 hours |
| Compliant Standards | FCC Class A certified, C-Tick, BSMI, cUL, CB, CCC, RoHS, LVD, VCCI Class A |
Dimensions & Weight
| Width | 5.9 in |
| Depth | 3.8 in |
| Height | 1.1 in |
| Weight | 29.63 oz |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 0 - 95% (non-condensing) |
General
| Device Type | Switch - 5 ports - smart |
| Enclosure Type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 5 x 10/100/1000 (2 PoE) |
| Power Over Ethernet (PoE) | PoE |
| PoE Budget | 18 W |
| Performance | Switching capacity: 10 Gbps ¦ Forwarding performance: 7.44 Mpps |
| Capacity | VLAN groups: 128 ¦ VLAN IDs: 4094 ¦ IGMP groups: 128 |
| MAC Address Table Size | 2K entries |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol | SNMP 2, ICMP |
| Encryption Algorithm | SSL |
| Features | Flow control, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, STP support, RSTP support, QoS, Cable Diagnostics Function, bandwidth control, fanless, LLDP support, Port Security, DHCP client, tagged VLAN, DSCP support, IGMP querier, Voice VLAN, VLAN management, VLAN group, EEE, WRR, HOL Blocking Prevention, loopback detection, port-based VLAN, port-based QoS, Unknown Storm Control, DNA support, Asymmetric VLAN, 1Mbit packet buffer |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Flash Memory | 2 MB |
| Status Indicators | Status, link/activity/speed, PoE, power |
Expansion / Connectivity
| Interfaces | 5 x 1000Base-T RJ-45 2 ports (PoE) / 1 port Power Delivery |
Power
| Power Consumption Operational | 3.24 Watt |
| Power Consumption Stand by | 1.728 Watt |
Software / System Requirements
| Software Included | D-Link Network Assistant |
