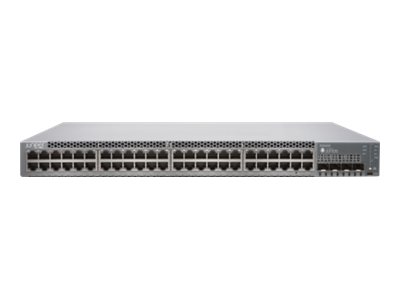

EX3400-48P WITH REDUNDANT POWER SUPPLIES
EX3400-48P WITH REDUNDANT POWER SUPPLIES
- Price:
$8,833.99
- Availability:
- Mfr #: EX3400-48P-2PS-TAA
- UNSPSC #: 43222612
- Item #: 008283369
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | TUV GS, CISPR 22 Class A, cUL, EN55024, CB, ICES-003 Class A, UL 60950-1 Second Edition, RoHS, EN 60825-1, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386 |
| TAA Compliant | Yes |
Dimensions & Weight
| Width | 17.4 in |
| Depth | 13.8 in |
| Height | 1.7 in |
| Weight | 14.55 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 0 - 95% (non-condensing) |
General
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP / 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 740 W |
| Performance | Switching capacity (64-byte packet size): 336 Gbps ¦ Throughput: 250 Mpps |
| Capacity | Virtual interfaces (VLANs): 4093 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ VLAN Spanning Tree Protocol instances: 510 ¦ ARP entries: 8000 ¦ IPv4 hosts: 36000 ¦ IPv4 routes (Multicast): 4000 ¦ Maximum of neighboring networks: 8000 ¦ IPv6 hosts: 18000 ¦ IPv6 routes (Multicast): 2000 ¦ ACL entries: 1500 ¦ LAG groups: 128 ¦ Maximum member ports per LAG: 16 ¦ QoS hardware queues per port: 12 ¦ IGMP snooping entries: 1000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9216 bytes |
| Max Units In A Stack | 10 |
| Routing Protocol | IS-IS, RIP-1, RIP-2, MSDP, static IPv4 routing, static IPv6 routing, RIPng, CIDR |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
| Encryption Algorithm | MD5, TLS, PEAP, TTLS |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Features | BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), DoS attack prevention, port mirroring, DiffServ support, store and forward, IPv6 support, SNTP support, sFlow, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, IP Precedence, DHCP server, VRF-Lite, DHCP proxy, DAI, temperature sensor, RTG, Virtual Chassis technology, NSB, NSR, GRES, PVST+, Cable Diagnostics Function, DHCP relay, DHCP client, Energy Efficient Ethernet, MIB, Zero Touch Auto Provisioning, MVRP, NDP, VSTP, NTP time synchronization, CoS, SP, tagged VLAN, Captive Portal, DSCP support, MACsec support, SDWRR, system log, ICMP, ICMP Router Discovery Protocol (IRDP), MIB II |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, ANSI/TIA-1057, IEEE 802.1ag, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.1BR |
| Processor | 1: 1 GHz |
| RAM | 2 GB |
| Flash Memory | 2 GB |
Expansion / Connectivity
| Interfaces | 48 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 2 x 40Gbit LAN QSFP+ uplink/stacking ¦ 4 x 10Gbit LAN SFP+ uplink/stacking ¦ 1 x serial management ¦ 1 x 100Base-TX RJ-45 management |
Power
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Power Provided | 920 Watt |
| Voltage Required | AC 120/230 V |
