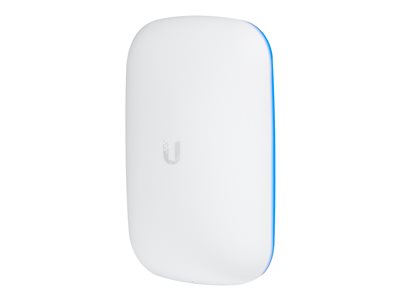

UAP-BeaconHD
UAP-BeaconHD
- Price:
$144.99
- Availability:
- Mfr #: UAP-BEACONHD-US
- UNSPSC #: 43222631
- Item #: 007615203
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | IC, FCC |
Networking
| Form Factor | In-wall mountable |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
| Frequency Band | 2.4 GHz, 5 GHz |
| Capacity | BSSIDs per radio: up to 8 |
| Features | Wi-Fi Multimedia (WMM) support, reset button, 4x4 MU-MIMO technology |
| Encryption Algorithm | AES, TKIP, WPA, WPA2, WPA-PSK, WPA-Enterprise, WEP |
| Compliant Standards | IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11w, IEEE 802.11ac Wave 2 |
Environmental Parameters
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
General
| Device Type | Wi-Fi range extender |
| Ruggedized Design | Indoor |
| Width | 4.4 in |
| Depth | 1.3 in |
| Height | 6.7 in |
| Weight | 9.17 oz |
| Localization | United States |
Processor / Memory / Storage
| Processors Installed | 880 MHz |
| RAM | 128 MB SDRAM |
Power
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 11.5 Watt |
Antenna
| Antenna | Internal |
| Antenna Qty | 4 |
