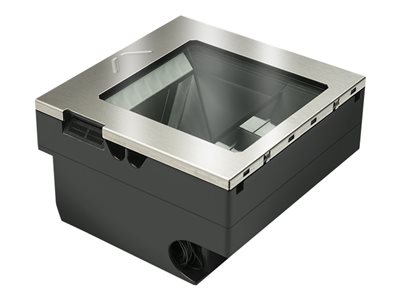

MAGELLAN 3510HSI TIN OXIDE PLATTER DEFAULT CONFIG 1D/2D SCAN
MAGELLAN 3510HSI TIN OXIDE PLATTER DEFAULT CONFIG 1D/2D SCAN
- Price:
$527.99
- Availability:
- Mfr #: M3513-010210-00403
- UNSPSC #: 43211701
- Item #: 008576212
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Mounting kit |
| Cables Included | 1 x PoweredUSB cable - 15 ft |
| Compliant Standards | IP52, China RoHS, EN 62471:2008, IEC 62471, EU RoHS |
Dimensions & Weight
| Width | 6 in |
| Depth | 6 in |
| Height | 3.4 in |
| Weight | 34.56 oz |
Barcode
| Interface Type | USB |
| Minimum Bar Width | 5 mil |
| Scan Element Type | 2D imager - LED |
| Sensor Resolution | 1280 x 800 |
| Window Glass Type | Tin Oxide Glass (TO) |
| Scan Mode | Fixed projection |
| Max Working Distance | 4 in |
| Skew (Degrees) | 75 |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 25% |
| Decode Capability | GS1 DataBar, QR code, Aztec code, MicroPDF417, PDF417, Data Matrix, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Composites, GS1 DataBar Stacked |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | Checkpoint Electronic Article Surveillance (EAS), Micro SD card slot, 25 kV ESD protection (air discharge), USB-OEM interface |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
Environmental Parameters
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
General
| Type | Barcode scanner - integrated - stationary |
Expansion / Connectivity
| Interfaces | 1 x PoweredUSB - Type A |
Power
| Power Device | No power supply |
