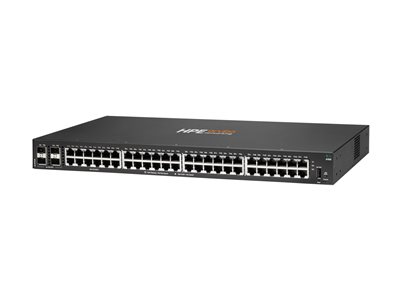

HPE Aruba 6100 48G 4SFP+ Switch - switch - 52 ports - managed - rack-mountable
HPE Aruba 6100 48G 4SFP+ Switch - switch - 52 ports - managed - rack-mountable
- Price:
$2,911.99
- Availability:
- Mfr #: JL676A#ABA
- UNSPSC #: 43222612
- Item #: 008578692
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | FCC Class A certified, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, Laser Class 1, UL 60950-1 Second Edition, EN 60825, VCCI Class A, EN 60825-1:2007, CAN/CSA C22.2 No. 60950 Second Edition, IEC 60825-1:2007 Class 1, EN 55022/CISPR 22 Class A, RFC1213, RFC1493, RFC2674, IEC/EN 60950-1, RFC768, RFC2460, RFC2925, RFC1591, RFC783, RFC792 |
| Localization | English / United States |
Dimensions & Weight
| Width | 17.4 in |
| Depth | 9.7 in |
| Height | 1.7 in |
| Weight | 7.54 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Humidity Range Storage | 15 - 90% (non-condensing) |
General
| Device Type | Switch - 52 ports - managed - stackable |
| Enclosure Type | Side to side airflow rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ |
| Performance | Switching capacity: 176 Gbps ¦ Throughput: 98.6 Mpps ¦ Latency (1 Gbps): 1.9 µs ¦ Latency (10 Gbps): 1.8 µs |
| Capacity | Switched virtual interfaces (SVIs): 16 ¦ ARP entries: 1024 ¦ IPv4 routes (Unicast): 512 ¦ IPv6 routes (Unicast): 512 ¦ IGMP groups: 512 ¦ MLD groups: 512 ¦ IPv4 ACL entries (ingress): 256 ¦ IPv6 ACL entries (ingress): 128 ¦ MAC ACL entries (ingress): 256 |
| MAC Address Table Size | 8192 entries |
| Routing Protocol | IGMPv2, IGMPv3 |
| Encryption Algorithm | SSL |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | Flow control, BOOTP support, ARP support, VLAN support, DiffServ support, IPv6 support, SNTP support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, MLD snooping, LACP support, LLDP support, port based access control, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Network Access Control (NAC), Neighbor Discovery Protocol (NDP), SNMP support, Internet Control Message Protocol (ICMP), EntityMIB, DNS client, LLDP-MED, User Datagram Protocol (UDP), Rapid Reconfiguration of Spanning Tree (RSTP), IPv6 addressing |
| Compliant Standards | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3az |
| Processor | 1 x ARM A9: 1.016 GHz |
| RAM | 4 GB DDR3 SDRAM |
| Flash Memory | 16 GB |
Expansion / Connectivity
| Interfaces | 24 x 10/100/1000 Base-T RJ-45 ¦ 4 x 1/10Gbit LAN SFP+ ¦ 1 x USB-C console ¦ 1 x USB Type A |
Power
| Power Device | Internal power supply |
| Power Provided | 65 Watt 0.5 A |
| Voltage Required | AC 230 V (50/60 Hz) |
| Power Consumption Operational | 20.6 Watt |
