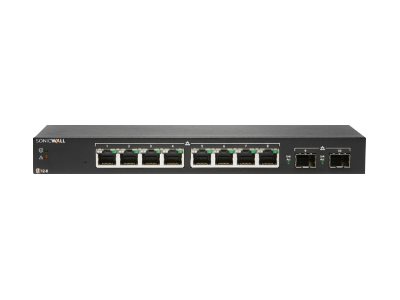

1YR SWITCH S12-8 SUPPORT
1YR SWITCH S12-8 SUPPORT
- Price:
$238.99
- Availability:
- Mfr #: 02-SSC-8364
- UNSPSC #: 43222501
- Item #: 008581855
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| MTBF | 1,387,712 hours |
| Compliant Standards | FCC Class A certified, UL, TUV GS, C-Tick, BSMI, cUL, CB, RoHS, KCC, WEEE, ANATEL, REACH, ICES Class A, LVD, EMC Class A, VCCI Class A, MSIP |
Dimensions & Weight
| Width | 9.4 in |
| Depth | 4.1 in |
| Height | 1.1 in |
| Weight | 21.87 oz |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 95% |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
General
| Device Type | Switch - 10 ports - managed |
| Bundled Services | 1 year 24x7 Support |
| Enclosure Type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 + 2 x Gigabit SFP |
| Performance | Switching capacity: 20 Gbps |
| Capacity | Virtual interfaces (VLANs): 4096 |
| MAC Address Table Size | 8K entries |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTPS, SSH, CLI |
| Authentication Method | RADIUS |
| Features | Flow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, firmware upgradable, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, RADIUS support, Jumbo Frames support, STP Root Guard, fanless, DHCP relay, LACP, DHCP client, 512KB packet buffer, Storm Control, Back Pressure Support, LLDP-MED, STP BPDU Guard, EEE, VLAN Tagging, daisy-chaining support, LAG, DSCP based QoS, zero-touch configuration |
| Compliant Standards | IEEE 802.1p, IEEE 802.1x, IEEE 802.1ab (LLDP) |
| RAM | 256 MB |
| Flash Memory | 32 MB |
| Status Indicators | Power, fault |
Expansion / Connectivity
| Interfaces | 8 x 1000Base-T RJ-45 ¦ 2 x 1000Base-X SFP |
Power
| Power Device | External power adapter |
| Power Provided | 24 Watt - 12 V |
| Power Consumption Operational | 5.7 Watt |
