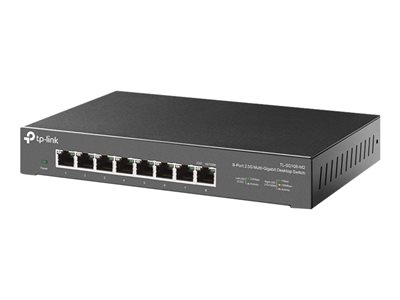

8-PORT 2.5G MULTI-GIGABIT DESKTOP SWITCH
8-PORT 2.5G MULTI-GIGABIT DESKTOP SWITCH
- Price:
$152.99
- Availability:
- Mfr #: TL-SG108-M2
- UNSPSC #: 43222612
- Item #: 008717877
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | Plug and Play, FCC, RoHS |
Dimensions & Weight
| Width | 8.9 in |
| Depth | 5.2 in |
| Height | 1.4 in |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 95% (non-condensing) |
General
| Device Type | Switch - 8 ports - unmanaged |
| Enclosure Type | Desktop, wall-mountable |
| Subtype | 2.5 Gigabit Ethernet |
| Ports | 8 x 100/1000/2.5G |
| Performance | Switching capacity: 40 Gbps ¦ Packet forwarding rate: 29.8 Mpps |
| Capacity | Packet buffer size: 1.5 MB |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 10KB |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, QoS, fanless, metal housing, DSCP support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3bz |
| Status Indicators | Power, status |
Expansion / Connectivity
| Interfaces | 8 x 100/1000/2.5G RJ-45 |
Power
| Power Device | External power adapter |
| Power Provided | DC 12 V - 1 A |
