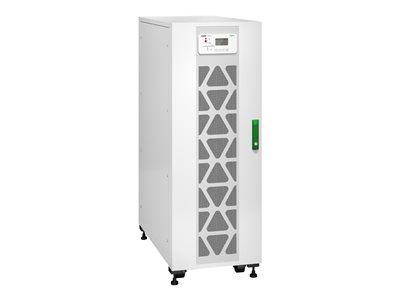

Easy UPS 3S 40 kVA 208V 33 UPS for internal batteries, Start-up 5x8
Easy UPS 3S 40 kVA 208V 33 UPS for internal batteries, Start-up 5x8
- Price:
$21,844.99
- Availability:
- Mfr #: E3SUPS40KFBS
- UNSPSC #: 39121011
- Item #: 008806243
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Dust filter |
| Features | Built-in static bypass |
| Compliant Standards | IEC 62040-3, IEC 62040-2, RoHS, WEEE, REACH, IP20, EAC, RCM, ISTA 2B, IEC 62040-4 |
Dimensions & Weight
| Width | 15 in |
| Depth | 43 in |
| Height | 55.1 in |
| Weight | 412.26 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - replacement - 1 year - on-site |
Battery
| Type | No battery |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Sound Emission | 70 dBA |
General
| Device Type | UPS - external |
| Color | White, RAL 9003 |
Power Device
| UPS Technology | On-line |
| Input Voltage | AC 208/220 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 3-phase |
| Frequency Required | 40 - 70 Hz |
| Output Voltage | AC 208/220 V 50/60 Hz |
| Power Capacity | 40000 Watt / 40000 VA |
| Total Harmonic Distortion (THD) | 4 % |
Dimensions & Weight (Shipping)
| Shipping Width | 31.5 in |
| Shipping Depth | 47.2 in |
| Shipping Height | 62.8 in |
| Shipping Weight | 485.01 lbs |
