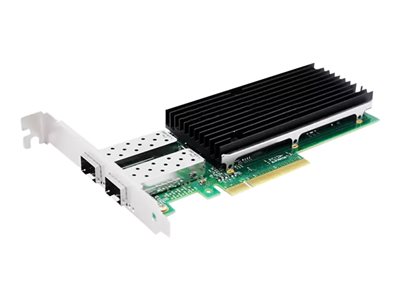

25GBS DUAL PT SFP28 3.0 X8 NIC 540-BCDG
25GBS DUAL PT SFP28 3.0 X8 NIC 540-BCDG
- Price:
$496.99
- Availability:
- Mfr #: 540-BCDG-AX
- UNSPSC #: 43201404
- Item #: 008816391
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Processor / Memory
| Processor | Intel |
Compatibility Information
| Designed For | Dell EMC PowerEdge R440, R540, R640, R740, R740xd, R7415, R7425, R940, T640 |
Miscellaneous
| Included Accessories | Low-profile bracket, full-height bracket |
| OEM Manufacturer Equivalent Part Number | DELL 540-BCDG |
Networking
| Ports | Gigabit Ethernet / 10Gb Ethernet / 25Gb Ethernet SFP28 x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, UDP/IP, IPv4, IPv6 |
| Status Indicators | Link/speed |
| Features | PXE support, RSS, SR-IOV, FCoE support, iSCSI boot, VXLAN, NVGRE, NV, DPDK, NFV, 9.5 KB Jumbo Frame |
| Compliant Standards | IEEE 802.3by |
Dimensions & Weight
| Width | 0.5 in |
| Depth | 6.5 in |
| Height | 2.7 in |
| Weight | 4.97 oz |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
General
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 3.0 x8 |
| PCI Specification Revision | PCI 3.0 |
Expansion / Connectivity
| Interfaces | 2 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - SFP28 |
Software / System Requirements
| OS Required | Microsoft Windows Server 2008 R2, Microsoft Windows 7 64-bit Edition, Linux Kernel 2.6.32, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Linux Kernel 3.x, VMware ESXi 5.5, Windows 8 / 8.1 / 10, VMware ESX 5.5, Linux Kernel 4.x or later, VMware ESX 6.x or later, VMware ESXi 6.x or later, Microsoft Windows Server 2016 R2 |
