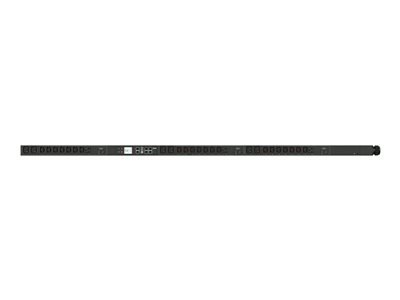

208V 3PY 20A RATED TO 16A-30 OTS 21 LCKING IEC-C1
  • Price:
    $2,850.99
« Back

208V 3PY 20A RATED TO 16A-30 OTS 21 LCKING IEC-C1

208V 3PY 20A RATED TO 16A-30 OTS 21 LCKING IEC-C1

  • Price:
    $2,850.99
  • Availability:
  • Mfr #:  PX3-5170V-E2F5
  • UNSPSC #:  39121017
  • Item #:  007624402
  • Add to Shopping List
  • cnet cat code #:  10061405
Need Help? Contact Zones Online support at 800.408.9663
Miscellaneous
Cables Included Power cable - integrated - 10 ft
Rack Mounting Kit Included
Features Vertical orientation, LCD display, voltage monitoring, current meter, overload protection, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, splash-proof plug, remote outlet switching, metering per input line, metering per branch circuit breaker, metering per output receptacle, replaceable controller, locking outlets, power cable IP44 compliant
Compliant Standards UL, ICES-003, RoHS, FCC Part 15 A, cULus
Networking
Remote Management Interface RS-232, USB, Ethernet 10/100/1000
Remote Management Protocol SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus
Dimensions & Weight
Width 2 in
Depth 2.8 in
Height 70.1 in
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Environmental Parameters
Max Operating Temperature 140 °F
Humidity Range Operating 85%
General
Device Type Power distribution unit - rack-mountable
Height (Rack Units) 0U
Cord Length 10 ft
Color Black powder coat
Power Device
Input Voltage AC 208 V
Input Voltage Range AC 190 - 208 V
Input Wiring 3-phase WYE (star)
Frequency Required 50/60 Hz
Input Connectors Power NEMA L21-20P
Power Output Connectors Details 3 x power NEMA 5-20R - 120 V 16 A ¦ 21 x power IEC 60320 C13 - 208 V 12 A ¦ 6 x power IEC 60320 C19 - 208 V 16 A
Output Voltage AC 208 V
Max Electric Current 20 A
Power Capacity 5800 VA
Power Capacity Details 5.3 kVA at 190 V, 5.8 kVA at 208 V
Circuit Protection Circuit breaker
Expansion / Connectivity
Interfaces 2 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 2 x USB - 4 pin USB Type A ¦ 1 x cascading - RJ-45 ¦ 1 x management (RS-232) - RJ-45 ¦ 1 x sensor ¦ 1 x monitoring - RJ-45
