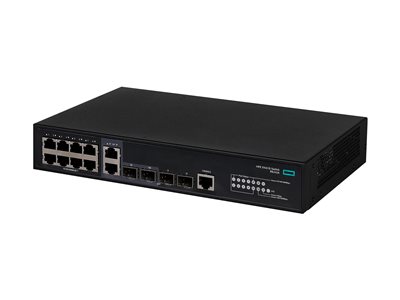

- Product Description HPE FlexNetwork 5140 8G 2SFP 2XGT Combo EI - switch - 12 ports - smart - rack-mountable
- Device Type Switch - 12 ports - L3 - smart
- Enclosure Type Rack-mountable 1U
- Subtype Gigabit Ethernet
- Ports 8 x 10/100/1000 + 2 x 1 Gigabit / 10 Gigabit SFP+ + 2 x combo 10GBase-T
- Performance Latency (1000 Mbps): 5 µs ¦ Latency (10 Gbps): 3 µs ¦ Throughput: 18 Mpps ¦ Routing/switching capacity: 128 Gbps
- Capacity IPv4 routing table entries: 512 ¦ IPv6 routing table entries: 256 ¦ VLAN IDs: 4094
- MAC Address Table Size 16384 entries
- Jumbo Frame Support 9216 bytes
- Routing Protocol OSPF, RIP-1, RIP-2, IGMP, OSPFv2, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, CIDR
- Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH-2, CLI, SCP, SNMP 6, NTP, ICMP, DHCP, RADIUS
- Features Flow control, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, WRR queuing, IPv6 support, High Availability, full duplex mode, sFlow, STP support, RSTP support, VRRP support, MSTP support, ACL support, QoS, CAR, RADIUS support, DHCP server, MLD snooping, DLDP support, STP Root Guard, IPv4 support, LLDP support, DHCP relay, LACP, Port Security, Smart Link Pass-Through, Energy Efficient Ethernet, dynamic ARP protection, DHCP protection, MVRP, SPQ, port isolation, GARP, OpenFlow support, IP source guard, ICMP Router Discovery Protocol (IRDP), Link Aggregation, VLAN Double Tagging (Q-in-Q), LLDP-MED, Smart Link, Guest VLAN, Ethernet OAM, proxy ARP, WRR, IRF Technology, BPDU protection, UDP support, MRP
- Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1r
- Power AC 100-240 V (50/60 Hz)
- Dimensions (WxDxH) 10.5 in x 6.3 in x 1.7 in
- Weight 3.31 lbs
- Localization English / United States
- Pricing Type BTO
- Manufacturer Warranty Limited lifetime warranty
|
