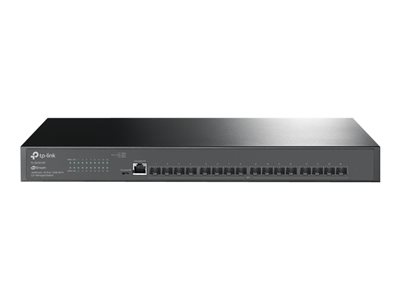

- Product Description TP-Link JetStream TL-SX3016F V1.6 - switch - 16 ports - managed - rack-mountable
- Device Type Switch - 16 ports - L2+ - managed
- Enclosure Type Rack-mountable
- Subtype 10 Gigabit Ethernet
- Ports 16 x 10 Gigabit SFP+
- Performance Switching capacity: 320 Gbps ¦ Packet forwarding rate: 238.08 Mpps ¦ Packet buffer size: 24 Mbit
- Capacity Priority queues: 8 ¦ IPv4 routes (static): 16 ¦ IPv6 routes (static): 16 ¦ Static routes: 48 ¦ ARP entries: 128 ¦ Maximum aggregation groups: 8 ¦ Ports per aggregation group: 8 ¦ Layer 2 multicast filtering profiles: 256 ¦ Layer 2 multicast filtering entries per profile: 16 ¦ VLAN groups: 4000 ¦ MAC VLAN address entries: 30 ¦ VLAN templates: 16 ¦ IP MAC port binding entries: 512 ¦ IPv4 source guard entries: 100 ¦ IPv6 MAC port binding entries: 512 ¦ IPv6 source guard entries: 100 ¦ Port security entries: 64
- MAC Address Table Size 32K entries
- Jumbo Frame Support 9KB
- Routing Protocol IGMPv2, IGMP, IGMPv3, static IP routing, MLDv2, MLD, MSTP, RSTP, STP
- Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SSH-2, CLI, TFTP, ICMP, DHCP, RSTP, SNMP, TACACS+, RADIUS
- Features Network monitoring, BOOTP support, ARP support, IGMP snooping, store and forward, firmware upgradable, SNTP support, sFlow, ACL support, DHCP server, MLD snooping, bandwidth control, DLDP support, LLDP support, DHCP relay, LACP, port based access control, MVR, port isolation, static routing, SP, SNMP support, system log, Link Aggregation, dual image support, fast leave, AAA, Static Link Aggregation, 1 fan, Voice VLAN, Private VLAN, VLAN group, ZTP, DoS protection, MAC based VLAN, MAB, DHCP filtering, schedule reboot, IPv4 and IPv6 dual stack, IGMP support, device discovery
- Compliant Standards IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah
- Power AC 100-240 V (50/60 Hz)
- Dimensions (WxDxH) 17.3 in x 8.7 in x 1.7 in
- System Requirements Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11, UNIX, Apple MacOS, Novell NetWare, Linux
|
