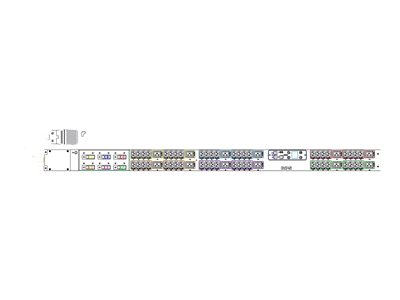

Eaton Metered Input Rack PDU EMI347-03 - power distribution unit - 14.4 kW
Eaton Metered Input Rack PDU EMI347-03 - power distribution unit - 14.4 kW
- Price:
$2,345.99
- Availability:
- Mfr #: EMI347-03
- UNSPSC #: 39121017
- Item #: 008038763
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
Cables Included | Power cable 3 ft |
Features | Vertical orientation, voltage monitoring, current meter, cascadable, environmental sensor ready |
Compliant Standards | UL, FCC |
Networking
Remote Management Interface | Ethernet 10/100, RS-232 |
Dimensions & Weight
Width | 4.1 in |
Depth | 2.1 in |
Height | 63.4 in |
Weight | 15.41 lbs |
Manufacturer Warranty
Service & Support | Limited warranty - 3 years |
Environmental Parameters
Min Operating Temperature | 32 °F |
Max Operating Temperature | 140 °F |
General
Device Type | Power distribution unit - rack-mountable |
Height (Rack Units) | 0U |
Cord Length | 36 in |
Color | Black, blue, yellow, purple, red, green, orange |
Image Color Disclaimer | The displayed product image may be a different color |
Power Device
Input Voltage | AC 200-240 V |
Input Wiring | 3-phase |
Frequency Required | 50 - 60 Hz |
Input Connectors | 1 x power CS8365 |
Power Output Connectors Details | 48 x power IEC 60320 C13 15 A ¦ 12 x power IEC 60320 C19 16 A |
Output Voltage | AC 200-240 V |
Max Electric Current | 40 A |
Power Capacity | 14.4 kW |
Circuit Protection | Circuit breaker |
Expansion / Connectivity
Interfaces | Management (Fast Ethernet) - RJ-45 ¦ Management (RS-232) |
Dimensions & Weight (Shipping)
Shipping Width | 5.7 in |
Shipping Depth | 11.2 in |
Shipping Height | 81.9 in |
