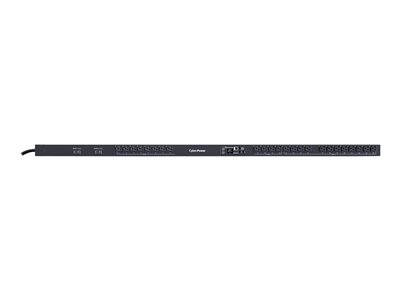

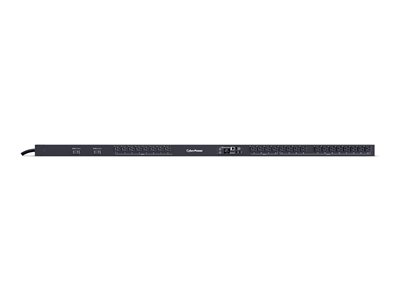

30A/120V 0U SWCHD PDU
30A/120V 0U SWCHD PDU
- Price:
$1,411.99
- Availability:
- Mfr #: PDU41102
- UNSPSC #: 39121017
- Item #: 009584491
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Screws, cable ties, cord retention tray |
| Cables Included | Power cable - integrated - 10 ft |
| Rack Mounting Kit | Included |
| Features | LCD display, voltage monitoring, amp meter, overload protection, firmware upgradable, switched, power measuring |
| Compliant Standards | FCC Class A certified, UL 60950, RoHS |
Networking
| Remote Management Interface | Ethernet, serial |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, HTTP, HTTPS, SSH, SMTP, NTP, DHCP, IPv4, IPv6, LDAP, RADIUS |
Dimensions & Weight
| Width | 2.2 in |
| Depth | 1.9 in |
| Height | 65.6 in |
| Weight | 17.2 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 2 years |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
General
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 10 ft |
| Color | Black |
Power Device
| Input Voltage | AC 100-120 V |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L5-30P |
| Power Output Connectors Details | 24 x power NEMA 5-20R |
| Output Voltage | AC 100-120 V |
| Max Electric Current | 30 A |
| Circuit Protection | Circuit breaker |
Expansion / Connectivity
| Interfaces | Management (Ethernet) - RJ-45 ¦ Serial - RJ-45 ¦ Sensor - RJ-45 ¦ Cascading - RJ-45 |
Dimensions & Weight (Shipping)
| Shipping Width | 7.3 in |
| Shipping Depth | 4.5 in |
| Shipping Height | 74.6 in |
| Shipping Weight | 21.38 lbs |
Software / System Requirements
| Software Included | PowerPanel Business Edition |
