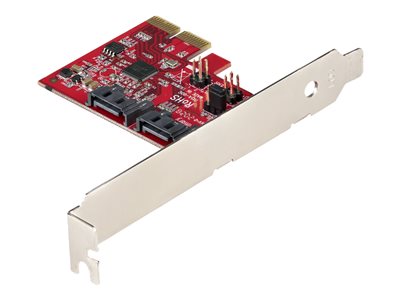

SATA PCIE CARD, 2 PORTS,-RAID, 6GBPS, PCI EXPRESS
SATA PCIE CARD, 2 PORTS,-RAID, 6GBPS, PCI EXPRESS
- Price:
$53.99
- Availability:
- Mfr #: 2P6GR-PCIE-SATA-CARD
- UNSPSC #: 43201834
- Item #: 009584453
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Low-profile bracket |
| Features | Support port multiplier, S.M.A.R.T. support, TRIM support, 4Kn drive compatible, bootable, ATAPI support |
| Compliant Standards | Plug and Play, RoHS |
Dimensions & Weight
| Width | 0.9 in |
| Depth | 2.7 in |
| Height | 4.8 in |
| Weight | 1.23 oz |
Storage Controller
| Interface | SATA 6Gb/s |
| Data Transfer Rate | 6 Gbit/s |
| Supported Devices | Hard drive, solid state drive |
| RAID Level | RAID 0, RAID 1, JBOD |
| Processor | ASMedia ASM1062R |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 185 °F |
| Humidity Range Operating | 20 - 80% |
General
| Device Type | Storage controller - plug-in card - low profile |
| Host Bus | PCIe 2.0 x2 |
| Color | Red |
Environmental Standards
| TAA Compliant | Yes |
Expansion / Connectivity
| Interfaces | 2 x SATA 6Gb/s - SATA (internal) |
Dimensions & Weight (Shipping)
| Shipping Width | 5.6 in |
| Shipping Depth | 6.7 in |
| Shipping Height | 1.2 in |
| Shipping Weight | 4.44 oz |
Software / System Requirements
| Software Included | Drivers & Utilities |
| OS Required | Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Apple MacOS X 10.10 or later, Linux 2.6.32 or later |
