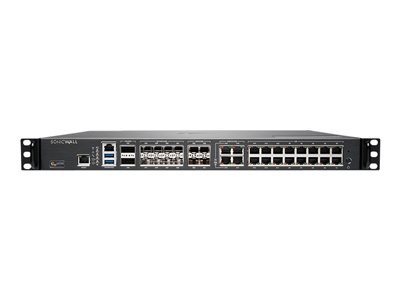

NSSP 10700 H/A
NSSP 10700 H/A
- Price:
$32,386.99
- Availability:
- Mfr #: 02-SSC-1717
- UNSPSC #: 43222501
- Item #: 009630961
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
IP Telephony
| VoIP Protocols | SIP, H.323 v1, H.323 v2, H.323 v3, H.323 v4, H.323 v5 |
| IP Telephony Features | VoIP gatekeeper support, VoIP outbound bandwidth management |
Miscellaneous
| Compliant Standards | FCC Class A certified, LVD, RoHS, C-Tick, VCCI Class A, MSIP Class A, KCC Class A, UL, cUL, TUV GS, CB, WEEE, REACH, ANATEL, BSMI, EMC, FIPS 140-2, ICSA Antivirus, ICSA Firewall certified, VPNC certified, Mexico CoC, Common Criteria, UC APL |
Networking
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, ICMP/IP, IPSec, PPPoE, L2TP, DHCP, PPTP, UDP/IP |
| Routing Protocol | OSPF, RIP-1, RIP-2, static IP routing, policy-based routing (PBR), BGP-4 |
| Remote Management Protocol | HTTP, HTTPS, SNMP 2, SNMP 3, CLI, SSH |
| Performance | Firewall throughput: 42 Gbps ¦ Threat prevention throughput: 27 Gbps ¦ Application throughput: 30 Gbps ¦ IPS throughput: 28 Gbps ¦ TLS/SSL inspection and decryption throughput: 10 Gbps ¦ VPN throughput: 22.5 Gbps ¦ Connection rate: 280000 connections per second |
| Capacity | SPI connections: 15000000 ¦ DPI connections: 12000000 ¦ DPI SSL connections: 1500000 ¦ VPN tunnels (site-to-site): 6000 ¦ IPSec VPN clients: 2000 (maximum 6000) ¦ Virtual interfaces (VLANs): 1024 ¦ Single Sign-On (SSO) users: 100000 ¦ SSL VPN licenses: 2 (maximum 3000) |
| Features | Deep Packet Inspection (DPI), firewall protection, web threat protection, URL filtering, Intrusion Prevention System (IPS), VPN support, Dead Peer Detection (DPD), DHCP relay, DHCP server, DSCP Marking, IPSec NAT-Traversal (NAT-T), LDAP support, NAT support, PAT support, Quality of Service (QoS), RADIUS support, routing, Stateful Packet Inspection (SPI), DDos attack prevention, IPv6 support, IPv4 support, DNS proxy, Jumbo Frames support, VLAN trunking, port mirroring, Inbound Load Balancing, Outbound Load Balancing, bandwidth control, Syslog support, IPFIX, NetFlow, Stateful switchover (SSO), anti-malware protection, 3 fans, Real-Time Deep Memory Inspection (RTDMI), Zero-touch provisioning (ZTP), anti-virus protection, Common Access Card (CAC) reader support |
| Encryption Algorithm | DES, Triple DES, 128-bit AES, 192-bit AES, 256-bit AES, SHA-1, MD5, ISAKMP, IKE, TLS 1.3, SHA-256, SHA-384, SHA-512 |
| Authentication Method | LDAP, XAUTH authentication, RADIUS, internal user database, TACACS+ |
| Compliant Standards | IEEE 802.3, IEEE 802.11e |
Manufacturer Warranty
| Service & Support | Limited warranty - 1 year |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 90% RH (non-condensing) |
General
| Device Type | Security appliance |
| Height (Rack Units) | 1U |
| Width | 16.9 in |
| Depth | 12.8 in |
| Height | 1.8 in |
| Weight | 20.06 lbs |
Processor / Memory / Storage
| Hard Drive | SSD 1 TB x 1 |
| Hard Drive (2nd) | SSD - 512 GB x 1 - M.2 |
Expansion / Connectivity
| Interfaces | 2 x 40Gb Ethernet/100Gb Ethernet - QSFP28 ¦ 8 x 2.5/5/10/25 Gigabit Ethernet - SFP28 ¦ 4 x 2.5/5/10 Gigabit Ethernet - SFP+ ¦ 4 x 1/2.5/5/10GBase-T - RJ-45 ¦ 16 x 1000Base-T - RJ-45 ¦ 1 x console - RJ-45 ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 2 x USB 3.0 - Type A |
Dimensions & Weight (Shipping)
| Shipping Weight | 32.85 lbs |
Power
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Power Consumption Operational | 155.3 Watt |
| Power Provided | 350 Watt |
Software / System Requirements
| OS Provided | SonicOS 7.0.1 |
