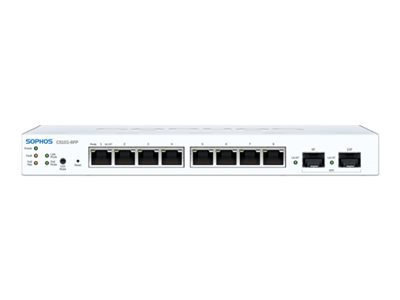

CS101-8FP SOPHOS SWITCH - 8PORTW/ FULL POE US POWER CORD

Need Help? Contact Zones Online support at 800.408.9663

Miscellaneous

Localization

United States

Manufacturer Warranty

Service & Support

Limited warranty - replacement - lifetime

General

Device Type	Switch - 8 ports - managed
Enclosure Type	Desktop, wall-mountable
Subtype	Gigabit Ethernet
Ports	8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
Power Over Ethernet (PoE)	PoE+
PoE Budget	110 W
Performance	Switching capacity: 20 Gbps
Capacity	Virtual interfaces (VLANs): 256 � Packet buffer size: 512 KB � Total 15.4 W PoE ports: 7 � Total 30 W PoE+ ports: 3
MAC Address Table Size	8K entries
Jumbo Frame Support	9KB
Routing Protocol	Static IP routing
Remote Management Protocol	SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTPS, SSH, CLI
Features	Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, STP support, RSTP support, MSTP support, DHCP snooping, QoS, RADIUS support, STP Root Guard, LLDP support, DHCP relay, LACP, DHCP client, MIB, GVRP, MAC and IP-based ACLs support, Storm Control, Back Pressure Support, MIB II, Voice VLAN, LLDP-MED, Guest VLAN, STP BPDU Guard, VLAN Tagging, DSCP based ToS, multicast mode, LAG, unicast mode, MAC-Port Binding
Compliant Standards	IEEE 802.3, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.1AX, IEEE 802.3bz
RAM	256 MB
Flash Memory	32 MB
Status Indicators	Power, PoE, LAN, link/activity, fault, PoE max

Expansion / Connectivity

Interfaces

8 x 10/100/1000 Base-T RJ-45 PoE+ � 2 x 1000Base-X SFP

Power

Power Device

External power adapter
