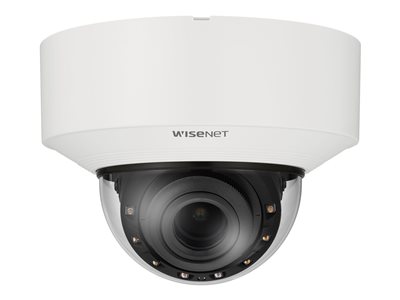

4MP INDOOR NETWORK AI IR DOME CAMERA
4MP INDOOR NETWORK AI IR DOME CAMERA
- Price:
$1,007.99
- Availability:
- Mfr #: XND-C7083RV
- UNSPSC #: 43222631
- Item #: 009642070
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Interfaces
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, SRTP, EAP |
Miscellaneous
| Compliant Standards | IEEE 802.1x, UL 2900-1, IP52, IK08, IEEE 802.3af |
| Color | White, RAL 9003 |
Lens Construction
| Type | Motorized zoom |
| Optical Zoom | 3.6 x |
| Focal Length | 2.8 mm - 10 mm |
| Lens Iris | F/1.4-3.0 auto iris (DC) |
| Focus Adjustment | Manual |
| Min Focus Distance | 19.7 in |
| Horizontal Field of View (degree) | 30.4 - 109.7 |
| Vertical Field of View (degree) | 17.8 - 60.8 |
| Diagonal Field of View (degree) | 35.3 - 131.3 |
Tilting
| Range (degree) | -45 to +75 |
Image Sensor
| Type | 4 MP CMOS 1/2.8" |
Environmental Parameters
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 0 - 95% (non-condensing) |
General
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | G.711, G.726, ADPCM, AAC-LC, U-LAW |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 6.3 in |
| Depth | 6.3 in |
| Height | 4.6 in |
| Weight | 2.98 lbs |
Camera
| Type | Color - Day&Night - fixed - indoor - vandal-proof |
| Digital Video Format | H.265, H.264, MJPEG |
| Max Digital Video Resolution | 2592 x 1520 |
| Motion Detection | Yes |
| Exposure Range | 2 sec - 1/12000 sec |
| Minimum Illumination | 0.038 lux - color - F1.4 - 30 IRE - shutter 1/30 sec ¦ 0.0038 lux - B&W - F1.4 - 30 IRE - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on ¦ 0.076 lux - color - F1.4 - 30 IRE - shutter 1/60 sec ¦ 0.0076 lux - B&W - F1.4 - 30 IRE - shutter 1/60 sec |
| Infrared LEDs | Yes |
| Infrared Distance | 131 ft |
| Digital Video Capture Resolution | 2592 x 1520, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Frame Rate (max) | 60 frames per second |
| RAM | 2 GB |
| Flash Memory | 512 MB |
| Features | Backlight Compensation (BLC), Highlight Compensation (HLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Extreme WDR, WiseNR II, Samsung Super Noise Reduction (SSNRV), Digital Image Stabilization (DIS), built-in gyroscope, Defog, Motion Detection Technology, Privacy Mask Function, Gain Control, auto white balance, Lens Distortion Compensation (LDC), image flip, image mirror, Hallway View, Object Detection, Intelligent Video Analysis (IVA), Defocus Detection, tamper-detection, fog detection, sound classification, shock detection, people counting, queue management, Heat Map, WiseIR, WiseStream II support, WiseStream III support, Constant Bitrate (CBR), Variable Bitrate (VBR), Unicast Streaming, Multicast Streaming, IP address filtering, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support |
Panning
| Range (degree) | 0 to 360 |
Expansion / Connectivity
| Ports | LAN/power - RJ-45 ¦ USB - Micro-USB Type B ¦ Audio line in ¦ Audio line out |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
Power
| Power Requirements | DC 12 V / PoE Class 3 |
| Power Device | 12.95 Watt |
