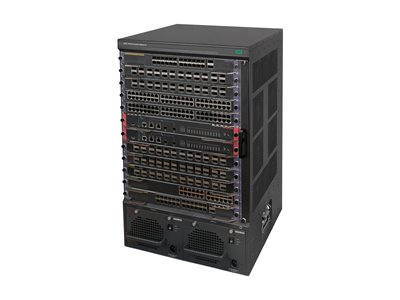

HPE FlexNetwork 7510X Chassis - switch - managed - rack-mountable
HPE FlexNetwork 7510X Chassis - switch - managed - rack-mountable
- Price:
$13,656.99
- Availability:
- Mfr #: R8N47A
- UNSPSC #: 24102001
- Item #: 009663638
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Fan tray |
| Rack Mounting Kit | Included |
| Compliant Standards | EN 61000-3-2, IEC 61000-4-8, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, VCCI Class A, FCC CFR47 Part 15 A, AS/NZS CISPR 32 Class A, EN 62368-1, IEC 62368-1, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, EN 55035, ETSI EN 300 386 |
| Pricing Type | BTO |
Dimensions & Weight
| Width | 17.2 in |
| Depth | 16.5 in |
| Height | 27.9 in |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 95% (non-condensing) |
General
| Device Type | Switch - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 16U |
| Subtype | 100 Gigabit Ethernet |
| Power Over Ethernet (PoE) | PoE |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | OSPF, BGP-4, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, VRRP, OSPFv2, PIM-SM, IGMPv3, GRE, OSPFv3, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), RIPng, MPLS |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SSH, CLI, DHCP |
| Encryption Algorithm | MD5, AES, TLS, PEAP, TTLS, TKIP, WEP |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Features | DHCP support, ARP support, MPLS support, packet filtering, IPv6 support, Zero Configuration Technology, Virtual Route Redundancy Protocol (VRRP) support, Quality of Service (QoS), Rapid Ring Protection Protocol (RRPP) support, Endpoint Admission Defense (EAD), IPv4 support, Intelligent Resilient Framework Technology (IRF), In-Service Software Upgrade (ISSU), Virtual Private LAN Service (VPLS), Virtual Extensible LAN (VXLAN), Ethernet Virtual Private Network (EVPN), Software Defined Networking (SDN), policy based routing, Support Operations, Administration, and Maintenance (OAM) mechanism, Graceful Insertion and Removal (GIR) mode, DDoS Protection, mDNS, Web authentication, Border Gateway Protocol (BGP) |
| Compliant Standards | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.3ba, IEEE 802.1AX |
| RAM | 4 GB |
| Flash Memory | 4 GB |
Expansion / Connectivity
| Interfaces | 1 x management ¦ 1 x serial (RS-232C) ¦ 1 x modem |
| Expansion Slots | 10 (total) / 10 (free) x expansion slot |
| Installed Modules Qty (Max) | 1 (installed) / 1 (max) |
Dimensions & Weight (Shipping)
| Shipping Weight | 209.44 lbs |
Power
| Power Device | Internal power supply (not installed) |
| Installed Qty | 2 (max) |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Provided | 1400 Watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
