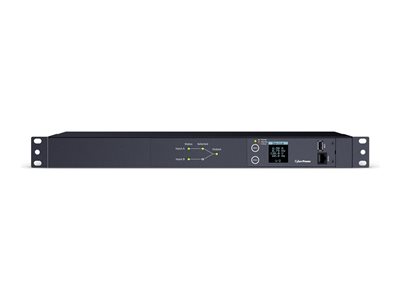

CYBERPOWER METERED ATS PDU 20A120V 1U 10 OUTLETS
CYBERPOWER METERED ATS PDU 20A120V 1U 10 OUTLETS
- Price:
$644.99
- Availability:
- Mfr #: PDU24002
- UNSPSC #: 39121017
- Item #: 009682569
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Cord retention tray |
| Cables Included | Power cable 10 ft ¦ Power cable adapter (L5-20P to 5-20P) |
| Features | Metal housing, LCD display, Automatic Transfer Switch (ATS), firmware upgradable, built-in maintenance bypass |
| Compliant Standards | FCC Class A certified, UL 62368, RoHS, cTUVus |
Networking
| Remote Management Interface | Serial |
Dimensions & Weight
| Width | 17.1 in |
| Depth | 8.4 in |
| Height | 1.8 in |
| Weight | 10.6 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
Battery
| Transfer Time | 10 ms |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
General
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Cord Length | 10 ft |
| Color | Black |
Power Device
| Input Voltage | AC 100-120 V |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 2 x 2 x power NEMA L5-20P |
| Power Output Connectors Details | 10 x power NEMA 5-20R |
| Output Voltage | AC 100-120 V |
| Max Electric Current | 20 A |
Expansion / Connectivity
| Interfaces | 1 x serial - RJ-45 |
Dimensions & Weight (Shipping)
| Shipping Width | 21.6 in |
| Shipping Depth | 15.7 in |
| Shipping Height | 4.9 in |
| Shipping Weight | 14.7 lbs |
