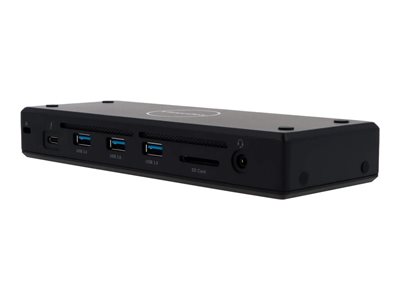

VisionTek VT5400 - docking station - Thunderbolt 4 - HDMI, DP, Thunderbolt - GigE - TAA Compliant
VisionTek VT5400 - docking station - Thunderbolt 4 - HDMI, DP, Thunderbolt - GigE - TAA Compliant
- Price:
$250.99
- Availability:
- Mfr #: 901504
- UNSPSC #: 43211602
- Item #: 009769836
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | 1 x Thunderbolt 4 cable - external - 2.6 ft |
| Features | Security lock slot (cable lock sold separately), wake on LAN, daisy chaining support, Preboot Execution Environment (PXE) support, MAC address pass-through, box package, 80W power delivery |
| Security Slot Type | Kensington security slot |
| Compliant Standards | Plug and Play, DisplayPort 1.4 |
| TAA Compliant | Yes |
Networking
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Video
| Max Resolution Details | 7680 x 4320 - 30 Hz (Single Display (Thunderbolt)) ¦ 3840 x 2160 - 60 Hz (Dual Display) ¦ 3840 x 2160 - 60 Hz (Single Display (DisplayPort 1.4 / HDMI)) |
System Requirements
| OS Required | Windows 10, Apple macOS 10.12 or later |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years with product registration (within 30 days of purchase) |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 95 °F |
General
| Product Type | Docking station |
| Width | 8.2 in |
| Depth | 2.9 in |
| Height | 1.2 in |
| Weight | 18.2 oz |
| Enclosure Color | Black |
Expansion / Connectivity
| Expansion Slots | 1 (total) / 1 (free) x SD Memory Card |
| Interfaces | 5 x USB 3.1 Gen 2 - 9 pin USB Type A ¦ 1 x display / video - DisplayPort - 20 pin DisplayPort ¦ 1 x display / video - HDMI - 19 pin HDMI Type A ¦ 1 x Thunderbolt 4 ¦ 1 x network - RJ-45 ¦ 1 x headphone/microphone combo jack - mini-phone 3.5 mm |
Dimensions & Weight (Shipping)
| Shipping Width | 11.1 in |
| Shipping Depth | 6.5 in |
| Shipping Height | 4.1 in |
| Shipping Weight | 4.2 lbs |
Power
| Power Device | Power adapter |
| Power Provided | 120 Watt |
