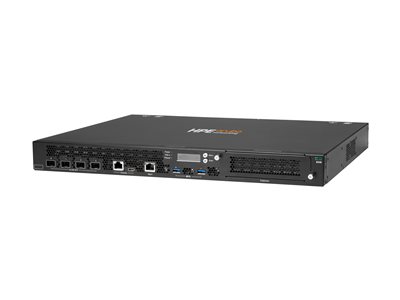

ARUBA 9240 RW CAMPUS GTW
ARUBA 9240 RW CAMPUS GTW
- Price:
$23,536.99
- Availability:
- Mfr #: R7H97A
- UNSPSC #: 43222501
- Item #: 009818933
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Internet of Things (IoT)
| Internet of Things (IoT) Compatible | Yes |
Miscellaneous
| MTBF | 185.301 hours |
| Compliant Standards | EN 62368-1:2014 Second Edition, UL 62368-1 Second Edition, CAN/CSA-C22.2 No. 62368-1-14, FCC Part 15 Class B, CISPR 32 Class B, EN 55032 Class B, ICES-003 Class B, EN 61000-3-2, EN 61000-3-3, EN 55035, KN32 Class B, KN35, CNS 13438, AS/NZS CISPR 32 Class B, VCCI Class B |
| Pricing Type | BTO |
Networking
| Form Factor | Rack-mountable |
| Ports Qty | 4 |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | 25 Gigabit Ethernet |
| Capacity | Maximum number of access points: 2048 ¦ Maximum number of managed devices: 32000 |
| Status Indicators | Power, status, peer node, port status |
| Features | 5 fans, Policy Enforcement Firewall (PEF), Quality of Service (QoS), Unified Communications |
Manufacturer Warranty
| Service & Support | Limited warranty - parts and labor - 1 year ¦ Limited warranty - software application support - 90 days |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
General
| Device Type | Gateway |
| Height (Rack Units) | 1U |
| Width | 17.4 in |
| Depth | 15.6 in |
| Height | 1.7 in |
| Weight | 18.08 lbs |
| Localization | Rest of World |
Expansion / Connectivity
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Interfaces | 4 x 25Gb Ethernet - SFP28 ¦ 2 x USB 3.0 - Type A ¦ 1 x console - RJ-45 ¦ 1 x console - USB-C ¦ 1 x management - RJ-45 |
Power
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Power Consumption Operational | 190 Watt |
| Power Provided | 550 Watt |
