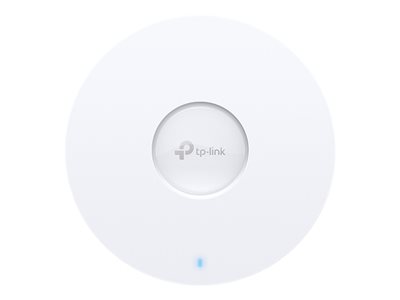

AX3000 Ceiling Mount WiFi 6 AP
AX3000 Ceiling Mount WiFi 6 AP
- Price:
$128.99
- Availability:
- Mfr #: EAP650
- UNSPSC #: 43222631
- Item #: 009828190
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Compatibility Information
| Designed For | TP-Link TL-SG3428X ¦ TP-Link JetStream TL-SG2008 V3, TL-SG2008P, TL-SG2210MP, TL-SG2218, TL-SG2428P, TL-SG3210 V3, TL-SG3210XHP-M2, TL-SG3428, TL-SG3428MP, TL-SG3428X, TL-SG3428XMP, TL-SG3452X, TL-SG3452XP, TL-SX3016F, TL-SX3206HPP, TL-SX3206HPP V1 |
Miscellaneous
| Included Accessories | Wall/ceiling mounting kit |
| Compliant Standards | FCC, RoHS |
Networking
| Form Factor | Wall / ceiling mountable |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 2976 Mbps |
| Line Coding Format | OFDM, 1024 QAM, OFDMA |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Spread Spectrum Method | OFDM, OFDMA |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH |
| Cloud-Managed | Yes |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 2402 Mbps |
| Capacity | Maximum number of configured SSIDs: 16 ¦ Number of concurrent clients: 250+ |
| Wi-Fi Rating | AX3000 |
| Status Indicators | Status |
| Features | Load balancing, Syslog support, E-mail alert, MAC address filtering, Wi-Fi Multimedia (WMM) support, Auto Channel Select (ACS), Access Control List (ACL) support, Quality of Service (QoS), reset button, rogue access point detection, Captive Portal, Transmit Power Control (TPC), MU-MIMO technology, beamforming technology, band steering, SSID to VLAN mapping, rate limit, Wireless Scheduler, Software Defined Networking (SDN), VLAN management, LED on/off button, seamless roaming, Airtime Fairness, Zero-touch provisioning (ZTP), schedule reboot, 160MHz bandwidth support, Omada Mesh technology, secure guest network, multi-site management |
| Encryption Algorithm | WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal, WPA-Enterprise, WPA-Personal |
| Authentication Method | Secure Shell (SSH), Radio Service Set ID (SSID) |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
General
| Device Type | Wireless access point |
| Width | 6.3 in |
| Depth | 6.3 in |
| Height | 1.3 in |
Expansion / Connectivity
| Interfaces | 1 x 1000Base-T (PoE+) - RJ-45 - 14.7 W |
Power
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Device | External power adapter / power injector |
| Voltage Required | DC 12 V |
| Power Consumption Operational | 13.25 Watt |
Antenna
| Antenna | Internal |
| Directivity | Omni-directional |
Software / System Requirements
| Software Included | Omada Controller |
| OS Required | Linux, Microsoft Windows XP / Vista / 7 / 8 / 10 / 11 |
