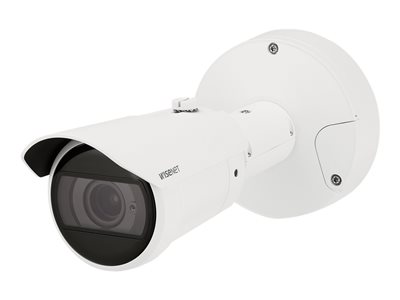

4MP IR BULLET AI CAMERA
4MP IR BULLET AI CAMERA
- Price:
$1,082.99
- Availability:
- Mfr #: XNO-C7083R
- UNSPSC #: 43222631
- Item #: 009880924
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Interfaces
| Video | USB |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, SRTP |
Miscellaneous
| Compliant Standards | NEMA Type 4X, IP67, IK10, IP66, IEEE 802.3af, IEEE 802.1x |
| Color | White, RAL 9003 |
Lens Construction
| Type | Motorized zoom |
| Optical Zoom | 3.6 x |
| Focal Length | 2.8 mm - 10 mm |
| Lens Iris | F/1.4-3.0 auto iris (DC) |
| Focus Adjustment | Manual |
| Horizontal Field of View (degree) | 30.4 - 109.7 |
| Vertical Field of View (degree) | 17.8 - 60.8 |
| Diagonal Field of View (degree) | 35.3 - 131.3 |
Image Sensor
| Type | 4 MP CMOS 1/1.8" |
Environmental Parameters
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | 0 - 95% RH (non-condensing) |
General
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | G.726, ADPCM, AAC-LC, G.711, U-LAW |
| Form Factor | Bullet |
| Connectivity Technology | Wired |
| Width | 3.7 in |
| Depth | 10.9 in |
| Height | 3.7 in |
| Weight | 3.62 lbs |
Camera
| Type | Color - Day&Night - fixed - outdoor |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 2688 x 1520 |
| Motion Detection | Yes |
| Exposure Range | 2 sec - 1/12000 sec |
| Minimum Illumination | 0.038 lux - color - F1.4 - 30 IRE ¦ 0.0038 lux - B&W - F1.4 - 30 IRE - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on ¦ 0.076 lux - color - F1.4 - 30 IRE - shutter 1/60 sec ¦ 0.0076 lux - B&W - F1.4 - 30 IRE - shutter 1/60 sec |
| Infrared LEDs | Yes |
| Infrared Distance | 131 ft |
| Digital Video Capture Resolution | 2688 x 1520, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 360, 320 x 240 |
| Frame Rate (max) | 60 frames per second |
| RAM | 2 GB |
| Flash Memory | 512 MB |
| Features | Backlight Compensation (BLC), image flip, image mirror, Highlight Compensation (HLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Extreme Wide Dynamic Range (E-WDR), WiseNR II, Samsung Super Noise Reduction (SSNRV), Digital Image Stabilization (DIS), Defog, motion detection, Privacy Mask Function, auto gain control, auto white balance, Lens Distortion Compensation (LDC), anti-flicker, Hallway View, Object Detection, Intelligent Video Analysis (IVA), Defocus Detection, tamper-detection, Audio Detection, sound classification, shock detection, appearing / disappearing detection, direction detection, loitering detection, entrance / exit detection, Virtual Line detection, people counting, queue management, Heat Map, notification picture to FTP, notification picture to E-mail, trigger recording, Unicast Streaming, Multicast Streaming, digest authentication, user access log, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, WiseStream III support, WiseStream II support, auto ICR |
Expansion / Connectivity
| Ports | USB - Micro-USB Type B ¦ Audio line-in/microphone ¦ Audio line out ¦ LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
Power
| Power Requirements | DC 12 V / PoE Class 3 |
| Power Device | 10 Watt |
