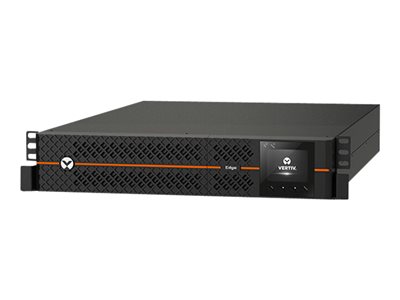

Vertiv EDGE - UPS - 2700 Watt - 3000 VA
Vertiv EDGE - UPS - 2700 Watt - 3000 VA
- Price:
$1,713.99
- Availability:
- Mfr #: EDGE-3000IRT2UXL
- UNSPSC #: 39121011
- Item #: 009898498
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
Included Accessories | Tower stand, 4-post rail rack mounting kit |
Cables Included | USB cable |
Features | Emergency power off, LCD display, Automatic Voltage Regulation (AVR), programmable load outlets |
Compliant Standards | CB, RoHS, REACH, ISTA 2A, EN 60020-1:2008+A1:2013 |
Networking
Remote Management Interface | USB |
Dimensions & Weight
Width | 17.2 in |
Depth | 24.8 in |
Height | 3.5 in |
Weight | 70.55 lbs |
Manufacturer Warranty
Service & Support | Limited warranty - 3 years |
Battery
Quantity | 6 |
Technology | Lead acid |
Capacity | 9 Ah |
Run Time (Up To) | 6 min at full load ¦ 10 min at 70% load ¦ 16 min at 50% load ¦ 43 min at 20% load |
Recharge Time | 3 hours |
Transfer Time | 6 ms |
Features | Spill-proof, valve-regulated |
Environmental Parameters
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 20 - 90% |
General
Device Type | UPS - rack-mountable / external |
Height (Rack Units) | 2U |
Power Device
UPS Technology | Line interactive |
Input Voltage | AC 230 V |
Input Voltage Range | AC 166 - 278 V |
Frequency Required | 55 - 65 Hz |
Input Connectors | 1 x power IEC 60320 C14 |
Power Output Connectors Details | 6 x power IEC 60320 C13 ¦ 1 x power IEC 60320 C19 |
Output Voltage | AC 200/208/220/230/240 V |
Power Capacity | 2700 Watt / 3000 VA |
Output Waveform | Sinewave |
Surge Suppression | Yes |
Surge Energy Rating | 624 Joules |
Circuit Protection | Circuit breaker |
Efficiency | 98% line mode |
Power Factor (PF) | 0.9 |
Expansion / Connectivity
Interfaces | 1 x USB |
Expansion Slots | 1 (total) / 1 (free) x Liebert IntelliSlot |
Dimensions & Weight (Shipping)
Shipping Width | 23.6 in |
Shipping Depth | 29.9 in |
Shipping Height | 9.4 in |
Shipping Weight | 85.98 lbs |
